Overview

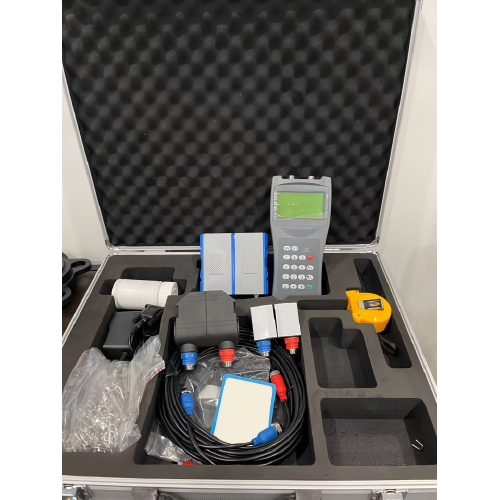

Enviro Testers – Digital Clamp-On Ultrasonic Flow Meter is a precision instrument designed for accurate and non-invasive flow measurement of liquids in industrial, laboratory, and field applications. Utilizing advanced ultrasonic technology, it provides highly reliable performance without disrupting pipelines. With its lightweight structure, user-friendly operation, and superior accuracy, this device is ideal for engineers, technicians, and researchers who require dependable and repeatable flow monitoring.
Features
- Non-invasive clamp-on installation, eliminating the need to cut pipes or halt operations
- High accuracy of ±1.0% with excellent repeatability (±0.2%)
- Wide flow measurement range: 0 to ±39.37 ft/s (0 to ±12 m/s)
- Lightweight and portable design for both field and laboratory applications
- Suitable for water and compatible liquid media
- Simple operation with reliable digital display
- Powered by 24 VDC for stable performance
Technical Specifications
| Specification | Details |
| Medium | Water or compatible liquids |
| Connectivity | Clamp-on installation |
| Flow Rate Range | 0 to ±39.37 ft/s (0 to ±12 m/s) |
| Measurement Range | 0 to ±39.37 ft (0 to ±12 m) |
| Accuracy | ±1.0% (0.03 ft/s to 39.37 ft/s) (±0.01 m/s to ±12 m/s) |
| Repeatability | ±0.2% |
| Power Supply | 24 VDC |
| Material | PC + ABS |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
