Nitrogen Dioxide Monitors

Nitrogen dioxide monitors measure NO2 concentration to support exposure control, ventilation verification, and incident response in industrial and occupied facilities. Typical deployments include fixed-point detectors near combustion equipment, loading docks, and indoor traffic zones, plus portable instruments used for maintenance walkdowns, complaint investigations, and commissioning checks. NO2 sensing commonly relies on electrochemical sensors designed for low ppm response, supported by compensation routines to improve stability across temperature and humidity changes. Certain applications use higher- selectivity analyzer methods when traceable measurement performance is required, subject to site calibration infrastructure and maintenance capacity. Integration options include relay alarms, 4 to 20 mA outputs, and Modbus or Ethernet gateways for PLC, SCADA, and facility monitoring platforms. Properly specified monitoring helps teams capture short peaks, document exposure controls, and reduce downtime by enabling faster root cause analysis.

Technical definition: what NO2 monitors measure and how engineers use the data

Nitrogen dioxide monitors are instruments that quantify NO2 in air and translate that measurement into alarms, control outputs, and time-stamped records. NO2 is a reactive oxidizer that can be generated by combustion processes, found in exhaust plumes, or present where nitrogen oxides are handled. Engineering and EHS teams use monitoring data to manage short-duration exposure peaks, validate ventilation and capture performance, and support corrective actions when process conditions or traffic patterns change.



Product types used in NO2 monitoring programs

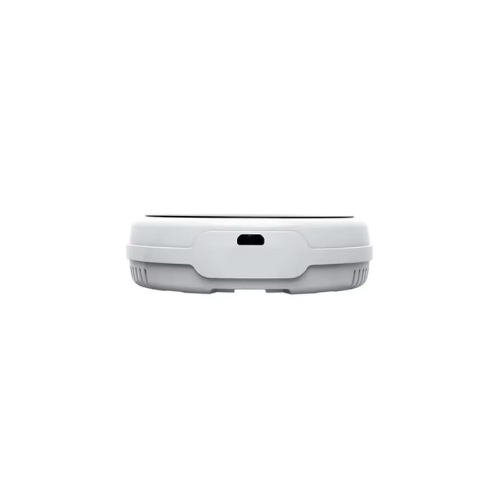

Fixed NO2 detectors and transmitters

Installed near credible sources such as generator rooms, boiler rooms, loading docks, welding areas, and indoor traffic corridors. Fixed detectors support continuous trending and alarm signaling.

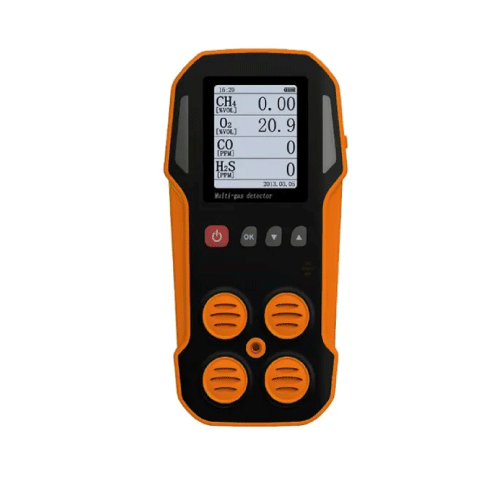

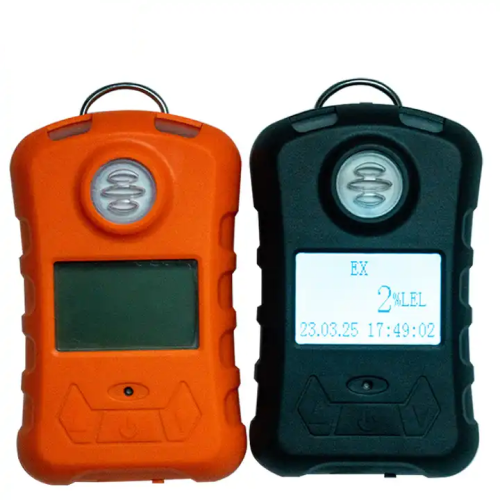

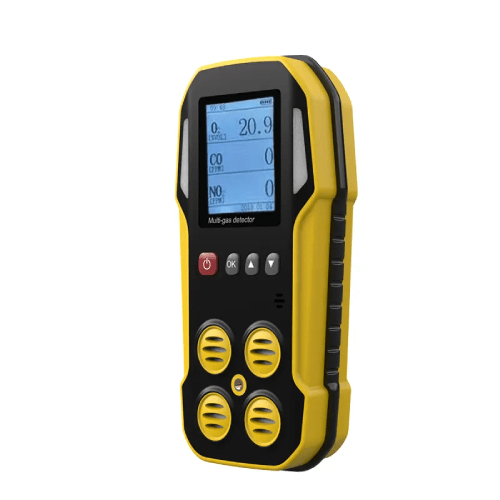

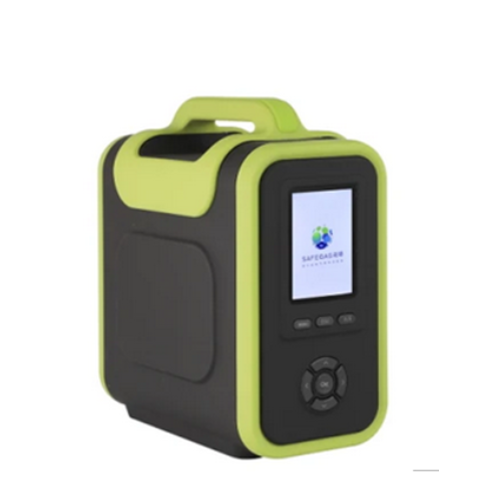

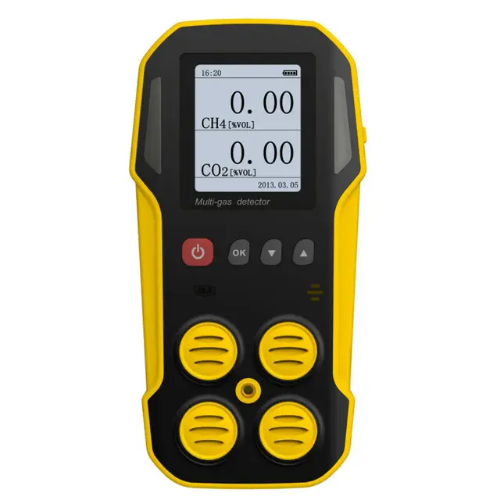

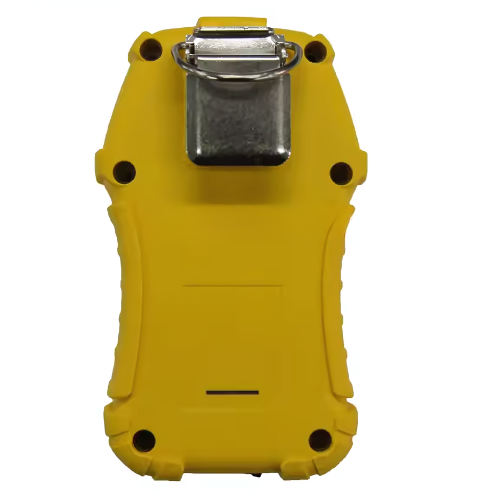

Portable NO2 monitors and survey instruments

Used for troubleshooting odor or irritation complaints, verifying safe conditions prior to work, and confirming control effectiveness after ventilation changes.

Area monitoring systems with controllers and annunciators

Multi-sensor systems that centralize alarm logic, supervise faults, retain event logs, and interface to PLCs or building automation.

Sampling-based NO2 monitoring (assumption-based)

Used where direct sensor placement is impractical due to heat, humidity, or access restrictions. Assumption: sampling delay and tubing maintenance are acceptable for the monitoring objective.

Reference-grade NO2 analyzers (assumption-based)

Applied when traceable performance is required for research, emissions work, or verification programs. Assumption: the site can support calibration gases, routine maintenance, and analyzer utilities.

Sensor technologies commonly applied to NO2 measurement

Electrochemical NO2 sensors

Most common for low ppm monitoring and alarms, with practical field calibration workflows.

Optical methods (assumption-based)

Used in specialized cases where selectivity and stability are priorities. Assumption: installation conditions support optical performance and maintenance.

Chemiluminescence NOx analyzers with conversion (assumption-based)

Used when NO and NO2 tracking is required, with appropriate conversion and calibration controls. Assumption: the method is selected and maintained by qualified personnel.

Enviro Testers has quickly established itself as a trusted leader in delivering advanced instrumentation for air, soil, and water measurement programs. With a growing B2B presence across North America, we lead in technology innovation, product reliability, and customer-focused support. Through research, continuous product development, a strict



quality assurance process, and expert guidance, we help businesses streamline operations and unlock the full potential of testing and measurement solutions.

Measurement performance features that improve decision quality

Low ppm sensitivity and range selection

NO2 monitoring often requires accurate response at low ppm levels where irritation and exposure concerns begin. Range selection should preserve low-level resolution while remaining usable during upset events.

Peak capture and response time

NO2 levels can spike during engine starts, burner tuning, or heavy indoor traffic. Configuration should avoid over-smoothing that hides short-duration peaks.

Selectivity and interference management

NO2 can coexist with NO, ozone, and other oxidizing gases. Engineering teams evaluate cross-sensitivity data and validate performance under representative site conditions.

Environmental compensation and stability

Temperature swings and humidity changes can shift sensor behavior. Compensation routines and appropriate enclosures reduce nuisance alarms and improve repeatability.

Integration options for facility systems and OT architectures

Outputs and communications

Common integration paths include:

• 4 to 20 mA outputs for PLC inputs and historian trending
• Relay contacts for alarms, ventilation enable, and interlock logic
• Modbus RTU/TCP for multi-point networks and centralized dashboards
• Ethernet gateways for SCADA and segmented OT environments

Alarm logic aligned to response procedures

Controllers typically support:

• Multi-stage thresholds for advisory, action, and high-severity response
• Latching high alarms requiring acknowledgement after corrective actions
• Horn silence with alarm persistence for controlled response workflows
• Fault supervision with defined fail-safe behavior for outputs

Event logging and documentation support

Alarm histories, fault events, and maintenance notes support commissioning signoff, incident review, and EHS documentation requirements.



Deployment configurations tuned to real NO2 sources

Placement driven by exhaust pathways and airflow

NO2 often follows exhaust plumes and airflow routes. Placement strategies consider ventilation short-circuiting, door traffic, and the location of combustion equipment exhaust.

Remote heads and service access

Service-friendly layouts reduce time spent in higher-risk zones during calibration and verification.

Sampling configurations for harsh zones (assumption-based)

Sampling can draw air from hot or restricted areas while keeping sensors accessible. Assumption: transport delay and condensation risks are controlled through design.

Hazardous area requirements (site-dependent)

Electrical classification influences detector approvals, wiring methods, and barrier selection in industrial settings.

Calibration, verification, and lifecycle planning

Bump testing and calibration intervals

Intervals are set based on criticality, sensor technology, and environmental severity. Defensible procedures improve repeatability and reduce downtime.

Calibration gas and traceability controls

Certified gases and controlled workflows support consistent alarm performance and audit- ready records.

Diagnostics and sensor health indicators

Useful features include drift tracking, end-of-life prompts, blocked inlet warnings, sampling flow fault codes, and fault states mapped to control outputs.

• Parking garages monitor NO2 to control exhaust fans and reduce exposure during peak vehicle entry and exit cycles.
• Loading docks monitor NO2 from idling trucks to protect workers and validate ventilation performance during busy shifts.
• Generator rooms monitor NO2 during routine tests to verify exhaust integrity and reduce exposure risk near doors.
• Boiler rooms monitor NO2 near burners to support safe startup procedures and identify combustion issues early.
• Warehouses monitor NO2 from propane forklifts to reduce exposure and support ventilation troubleshooting workflows.
• Tunnels and underground facilities monitor NO2 to trigger ventilation response and protect workers in variable airflow zones.



• Welding and thermal cutting areas monitor NO2 formation to verify local exhaust performance and reduce short-term exposure peaks.
• Foundries monitor NO2 near furnaces to support exposure control and evaluate ventilation effectiveness during production changes.
• Industrial hygiene teams use portable monitors to investigate irritation complaints and confirm corrective actions after control adjustments.
• Laboratories monitor NO2 where nitrogen oxides are generated to verify hood capture performance and safe work practices.
• Emergency response teams use portable monitors to map NO2 plumes and confirm clearance before re-entry after incidents.
• System integrators deploy multi-point NO2 monitoring to centralize alarms and trend concentrations across distributed combustion zones.

• OSHA 29 CFR 1000 Air Contaminants
• OSHA 29 CFR 146 Permit-Required Confined Spaces
• OSHA 29 CFR 1200 Hazard Communication
• OSHA 29 CFR 147 Control of Hazardous Energy (Lockout/Tagout)
• ANSI/ASSP 1 Confined Spaces
• NIOSH methods and exposure references for nitrogen dioxide
• ACGIH TLVs and BEIs (program-dependent)
• NFPA 70 National Electrical Code (NEC)
• NFPA 72 National Fire Alarm and Signaling Code
• International Mechanical Code (IMC) ventilation provisions (jurisdiction-dependent)
• International Fire Code (IFC) provisions (jurisdiction-dependent)
• UL certifications applicable to gas detection equipment (model-dependent)
• CSA certifications applicable to gas detection equipment (model-dependent)
• WHMIS requirements for hazardous products in Canada
• CCOHS exposure references for nitrogen dioxide
• Provincial OHS regulations in Canada (jurisdiction-dependent)
• Canadian Electrical Code requirements for special or hazardous locations (site- dependent)

NO2 monitoring configured for transient exhaust events and peak protection

NO2 hazards often present as short spikes tied to engine starts, idling patterns, or combustion tuning. Enviro Testers supports monitoring configurations that preserve peak visibility, define staged alarms aligned to response playbooks, and reduce the chance that smoothing hides critical events.



Selectivity and stability in mixed nitrogen oxide environments

Facilities may encounter NO alongside NO2 and other oxidizers. Practical differentiators include:

• Sensor selection guidance based on expected co-gases, humidity, and temperature swings
• Field verification workflows that validate response under representative exhaust conditions
• Configuration strategies that balance nuisance alarm reduction with peak capture
• Diagnostics that flag drift, contamination, or end-of-life before readings become unreliable

Integration-ready outputs for ventilation control and facility systems

NO2 monitoring often drives fan control, alarms, and escalation procedures. Enviro Testers supports integration requirements through:

• Documented 4 to 20 mA scaling with defined fault current conventions
• Relay outputs for alarm annunciation and ventilation enable sequences
• Modbus connectivity for centralized dashboards and historian retention
• Event logs that support incident investigation and maintenance traceability

Maintainability that fits facilities with limited downtime

Service windows are often short in garages, plants, and generation sites. Engineering- oriented maintainability includes:

• Service-friendly mounting and clear calibration interfaces
• Sampling options for restricted zones where direct placement is not sustainable
• Planned spares strategies aligned to sensor technology and environmental severity
• Documentation bundles suitable for system integrators and EHS auditors

Procurement-friendly standardization without sacrificing engineering fit

Enviro Testers helps organizations standardize monitoring platforms and documentation while tailoring ranges, housings, and communications options to each NO2 source zone’s risk profile.

Teams deploying nitrogen dioxide monitoring often need help selecting sensing methods, defining placement near combustion sources and traffic zones, integrating signals into PLC or building automation, and building verification workflows that remain defensible over time. Connect with Enviro Testers through our Contact Us page to request product



information, technical consultation, integration support, procurement guidance, or assistance developing calibration and maintenance procedures.
