Overview

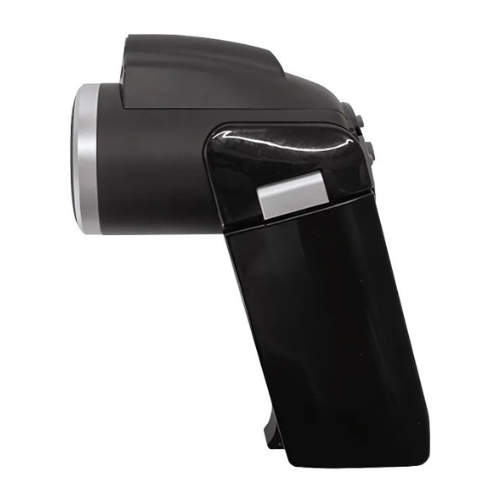

ETEHPTPC-102 full HD thermal camera is an affordable, easy-to-operate and high-performance thermal imaging camera that offers accurate temperature measurements at safe distances. It can be the best budget thermal camera. With a reliable performance and accurate temperature measurement, the affordable thermal camera can effectively improve the efficiency of inspection work. This industrial thermal imaging camera is a powerful tool to ensure the production process and product quality in the industrial field.
Features
- Visible and infrared image fusion and overlay
- Excellent thermal image and high accuracy temperature measurement
- 2″,270°rotatable and foldable LCD can help you observe from different angle
- Multiple temperature measurement mode
- Tiny size, light weight 400g
- Multi-lens for option
- Provide free and professional analysis software
Applications
- Building Diagnostics
- Research & Development
- Automation Applications
- Electrical/Mechanical Inspection
- Preventive & Predictive maintenance
Technical Specifications
| Parameters | Details | |
| ETEHPTPC-102-A | ETEHPTPC-102-B | |
| Detector Data | ||
| Type | Uncooled FPA | |
| IR Resolution | 160×120 | 384×288 |
| Pixel Pitch | 17μm | |
| Spectral Range | 7.5～14μm | |
| NETD/Sensitivity | 70mK | |
| Lens | ||
| FOV | 24°×18° | 24°×18° |
| IFOV | 2.6mrad | 1.13mrad |
| Focus | Auto/Motor | |
| Lens (Optional) | 12°×9° | 48°×37° / 12°×9° / 6.0°×4.5° |
| Image Performance | ||
| Display | 3.2”, 270° tiltable LCD, 800×480 pixels | |
| Visual Camera | 3.0 mega pixel | |
| Frequency | 50Hz/60Hz | |
| Zoom | 1X～4X continuous | 1X～8X continuous |
| Color Palettes | 12 palettes (iron, rainbow, white hot, black hot, etc.) | |
| Brightness | Manual | |
| Measurement | ||
| Temperature Range | -20℃～+250℃ (Standard), +200℃～+600℃ (Optional) | |
| Temperature Accuracy | ±2℃ / ±2% (reading) | |
| Spot Meter | 4 adjustable spots | |
| Line Profile | 1 Vertical / Horizontal | |
| Area | 5 movable areas (rectangular & circular, max/min/avg temp) | |
| Isotherms Analysis | Capture high/low temperature/interval | |
| Alarm | Voice, color | |
| Measurement Correction | Auto/Manual | |
| Emissivity Correction | Adjustable from 0.01 to 1.0 or selected from list of materials | |
| Background Temp Correction | Auto | |
| Atmospheric Transmissivity Correction | Auto | |
| Setting function | Date/time, temperature unit ℃/℃/K, language | |
| Languages | 10 (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified & Traditional Chinese) | |
| Image Storage | ||
| Storage Type | 1G | |
| Signal frame infrared image format | JPEG with 14-Bit radiometric image | |
| Voice Annotation | 40s voice record, stored with per image via built-in microphone | |
| Laser Point
Interfaces |
||
| Grade/Type | Class2, 1mW/635nm Red | |
| Power Interface | Yes | |
| SD Card Slot | Yes | |
| Video Output | CVBS | |
| Audio Output | Yes | |
| USB | USE2.0, radiometric images measurement data and voice are transferred to PC | |
| Tripod | 1/4”-20 | |
| Power System | ||
| Battery Type | Lithium battery | |
| Battery Operation Time | 2h continuous | |
| External Power | DC: 5V±5% | |
| Charging System | Intelligent charger or in-camera | |
| Power Saving | Yes | |
| Environment Parameters | ||
| Operating Temp Range | -20℃～+50℃ | |
| Storage Temp Range | -40℃～+70℃ | |
| Humidity | ≤95% (non-condensing) | |
| Vibration | 2G (IEC60068-2-6) | |
| Shock | 25G (IEC60068-2-29) | |
| Encapsulation | IP54 (IEC60529) | |
| Physical Data | ||
| Size | 128mm × 62mm × 154mm | |
| Weight | ≤0.4kg (with battery and standard lens) | |
