Overview

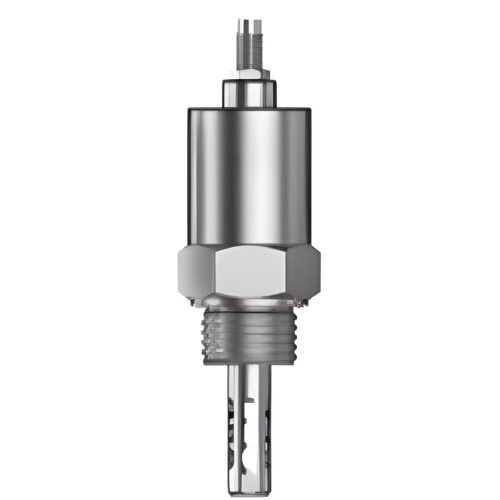

Monitoring the micro-moisture of lubricating oil and hydraulic oil in large-scale continuous operation equipment, heavy machinery equipment and other equipment has an irreplaceable role in ensuring the normal operation of these key equipment. Because the presence of moisture will damage the oil film, cause the failure of additives, cause corrosion of metal parts, shorten the oil service life, and even cause an unplanned shutdown of large machinery, causing serious safety accidents and economic losses. For generator sets and transformers, moisture will destroy the oil’s insulating properties and threaten the safety of power equipment and personnel. The ETEMAM-418 micro-moisture sensor can capture the change of electrical characteristics of the oil-water mixture in real-time, compensate the data through a high-precision temperature probe, and obtain the moisture content in oil through an optimization algorithm.
Features
- Continuous and Rapid Water Activity Detection
- Accurate Micro-Moisture Measurement
- Stable Long-Term Operation in Harsh Environments
- Compact Structure with Easy System Integration
- High Oil and Pressure Resistance
- Supports Multi-Mode Signal Output
Application
- Lubricating Oil Monitoring in Heavy Machinery
- Hydraulic Oil Condition Monitoring
- Transformer and Power Equipment Protection
- Industrial Equipment Moisture Detection
- Preventive Maintenance for Large-Scale Machinery
- Real-Time Oil Quality Assessment
Technical Specifications
| Specification | Details |
| Temperature | -40 – 120 ℃, ±0.3℃ (at 25℃) |
| Water Activity (aw) | 0~1 aw, ±0.02 aw (0～0.6), ±0.03 aw (0.6～0.9), ±0.04 aw (0.9～1) |
| Moisture Content (ppm) | 0~5000 ppm, ±10% |
| Working Voltage | DC12～32V (RS485), DC20～32V (4-20mA) |
| Working Current | ＜20mA (RS485), ＜40mA (4-20mA) |
| Working Temperature | -40℃ ~ 85℃ |
| Liquid Temperature | -40℃ ~ 120℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Detect Probe Allowable Pressure | ≤ 15 bars |
| Detect Probe Allowable Flow Rate | ≤ 0.3 m/s |
| IP Rate | IP66 |
| Detect Probe Material | Stainless Steel 316 |
| Threaded Interface | G3/4 |
| Electronic Interface | M8*1, 6 Core |
| Cable Connector | 6 core, 2 meters length, 24AWG |
| Weight | 136g |
| Applicable Oil | Commonly used mineral oil, synthetic and semi-synthetic lubricating oil, hydraulic oil, transformer oil, etc. |
