Overview

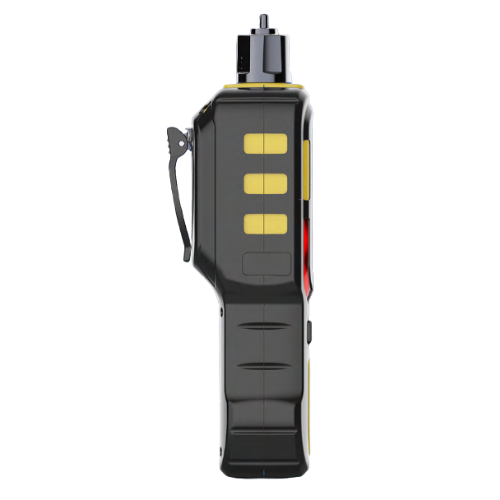

Enviro Testers pump multi-parameter detector (hereinafter referred to as the detector) is an intelligent multi-parameter detector designed with advanced integrated circuit technology, standard intelligent technical level design technology and proprietary digital-analog hybrid communication technology The detector adopts a built-in pump-suction sampling method for gas sampling and the sensitive element adopts a high-quality gas sensor for gas detection. It has good sensitivity and excellent repeatability, easy to use and maintain, and greatly meets the safety of the industrial site. For high reliability requirements the shell is made of high-strength engineering plastics and composite non- sliprubber, which has high strength, good hand feeling, and is waterproof, dustproof and explosion-proof.
Features
- Detect one or six gas types at the same time
- External TF memory card stores data
- Imported miniature vacuum suction pump is adopted
- App: Bluetooth connection printer, app
- Support alarm/timing/ manual storage
- GPS positioning function
Technical Specifications
| Alarm Method | Sound, Light, Vibration, Display (TWA/STEL) |
| Response Time | T90 < 30s |
| Charging Time | < 5 hours |
| Working Time | ≥ 8 hours |
| Working Environment | -10°C ~ 50°C, <95% RH |
| Display | 3.5-inch color LCD screen |
| Product Size | 231 × 87 × 60 mm |
Technical Data
| Detecting Gas | Range | Resolution | Low Alarm Point | High Alarm Point |
| EX | 0~100%LEL | 1%LEL | 20%LEL | 50%LEL |
| H₂S | 0~100ppm | 1ppm | 10ppm | 35ppm |
| CO | 0~1000ppm | 1ppm | 50ppm | 150ppm |
| O₂ | 0~30.0%VOL | 0.1%VOL | 19.5%VOL | 23.5%VOL |
| CO₂ | 0.00~5.00%VOL | 0.01%VOL | 1.00%VOL | 2.00%VOL |
| NO₂ | 0.0~20.0ppm | 0.1ppm | 5.0ppm | 10.0ppm |
