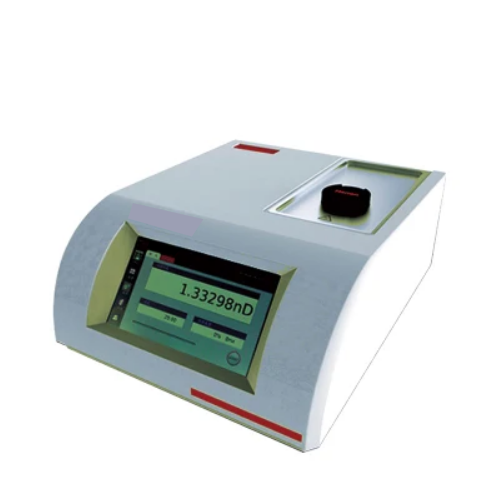

Overview
The refractometer is equipped with a high-performance linear CCD sensor. Through high-speed and high-precision signal acquisition, analysis and processing technology, it is equipped with a semiconductor Parte super temperature control system. It can measure the refractive index (Nd) and the mass fraction of sugar solution (Brix) of transparent, translucent, dark, and viscous liquid with high accuracy and efficiency.
Product Feature
- Built-in Peltier temperature control, improve accuracy and stability
- LED cold light source instead of the traditional sodium light lamp and halogen tungsten lamp
- Compliance with 21CFR Part 1 audit trail, pharmacopoeia and electronic signature
- Support network printing, support data statistical retrieval
- Multi-level authority management, authority can be freely configured
- Touch color screen, user-friendly operation interface
- Auto Refractometer has passed TART and CE certification.
Technical Specifications
| Range | 1.3000 to 1.7000(nD) |
| Resolution | 0.0001(nD) |
| Precision | ±0.0002 |
| Brix range | 0-100%(Brix) |
| Brix accuracy | ±0.1%(Brix) |
| Test mode | Refractive index / sugar content or customized |
| Temperature control method | Built-in Peltier |
| Temperature control range | 5℃ to 65℃ |
| Temperature control stability | ±0.03℃ |
| light source | LED |
| wavelength | 589nm |
| Prism | sapphire |
| Sample cell | stainless steel |
| Detection method | High-resolution linear CCD |
| Display method | 7 inch FTF color touch screen |
| data storage | 32G |
| Output method | USB, RS232, RJ45, SD card, U disk |
| User Management | Yes/four-level authority management |
| Audit trail | YES |
| Electronic signature | YES |
| Custom method library | YES |
| Export file to verify high-level protection MD5 | YES |
| WIFI printing | YES |
| Export in multiple file formats | PDF & Excel |
| Size | 360 mm x 300 mm x 155mm |
| Power supply | 220V / 50Hz |
| Weight | 5kg |
