Overview

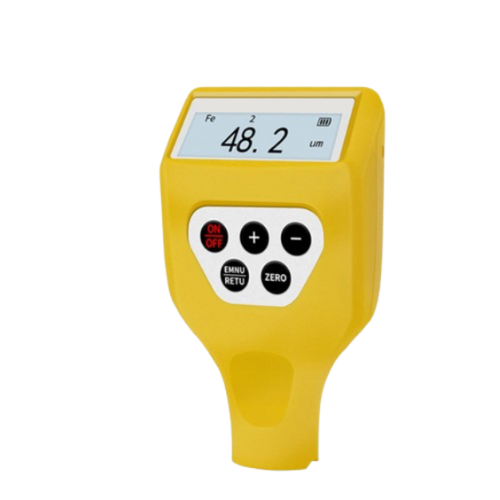

Enviro Testers Car Paint and Coating Non-Destructive Tester is a professional non-destructive testing device designed for accurately measuring the thickness of coating layers on various metal surfaces. This product utilizes both magnetic and eddy current thickness measurement methods to deliver precise results across different substrates. It can measure non-magnetic coatings on magnetic metals such as steel, iron, and nickel, as well as non-conductive coatings on non-magnetic metals like aluminum, copper, and stainless steel. This device is lightweight, portable, and designed with user-friendly functionality, making it suitable for automotive inspections, corrosion prevention, and quality control. With a wide measuring range of up to 2000 µm and high accuracy, this product ensures reliable performance in both industrial and professional applications.
Features
- Dual Measurement Methods
- Wide Measuring Range
- Non-Destructive Testing
- High Accuracy & Reliability
- Lightweight & Portable Design
- USB Connectivity
- User-Friendly Operation
- Durable Build
- Versatile Applications
- OEM/ODM Support
Technical Specifications
| Measuring Principle | Magnetic Principle |
| Measuring Range | 0 µm to 1500 µm |
| Thinnest Substrate | 0.012 in (0.3 mm) |
| Measurement Accuracy | ±(2%H + 1.5) |
| Resolution | 0.1 µm / 1 µm |
| Usage Environment | No strong magnetic fields Temperature: 5°F to 122°F (-15°C to 50°C)
Humidity: 20%RH – 90%RH |
| Minimum Curvature | Convex 0.197 in; Concave 0.984 in (Convex 5 mm; Concave 25 mm) |
| Power Supply | 3.7V Lithium Battery (1200mAh) |
| Weight | 2.54 oz (72 g) |
| External Dimensions | 4.21 in × 2.44 in × 0.98 in (107 mm × 62 mm × 25 mm) |
