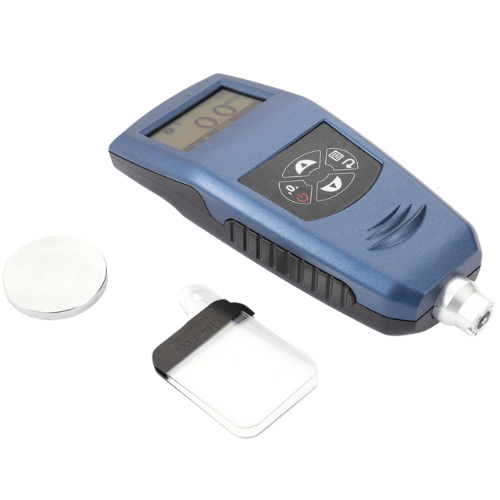

Features
- Magnetic induction measurement for non-magnetic layers on ferrous substrates.
- Measuring range 0–1250 µm (0–50 mil).
- Resolution 0.1/1 µm, accuracy ±2 µm (0–100 µm) or ≤2.5%.
- Graphic lcd display, stores up to 500 readings.
- Powered by 3 × aaa batteries, portable (150×50.5×29 mm, 110 g).
- Zero/one-point calibration, stats, oem options, 2-year warranty.
Technical Specifications
| Specification | Details |
| Measurement Principle | Magnetic induction (non-magnetic coatings on magnetic substrates; ISO 2178 / ASTM 07091) |
| Measuring Range | 0 to 1250 µm (0 to 50 mil) |
| Resolution | 0–999 µm: 0.1 µm; ≥1000 µm: 1 µm |
| Accuracy | 0–100 µm: ±2.0 µm; 101–1250 µm: ≤ 2.5% |
| Data Memory | Stores up to 500 readings |
| Display Type | Graphic LCD (backlit) |
| Power Supply | 3 × AAA batteries (1.5 V each) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Weight | Approx. 110 g (≈ 3.88 oz) |
| Dimensions (L × W × H) | 150 mm × 50.5 mm × 29 mm (5.91 in × 1.99 in × 1.14 in) |
