Overview

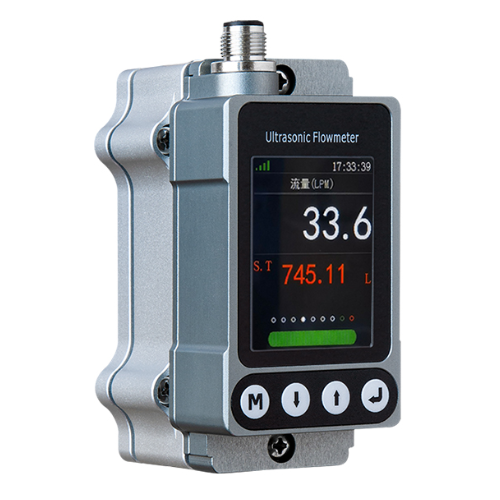

The Enviro Testers Clamp-On Ultrasonic Flow Meter with Wireless IoT Communication is an ultrasonic liquid flow meter designed using the principle of time difference. It can obtain the flow rate in the pipeline by measuring the time difference between upstream and downstream transmission and is suitable for pipelines between Ø6 and Ø110mm.
The Enviro Testers uses advanced integrated circuit technology, which can effectively achieve the design principle of anti-noise, high accuracy, and low energy consumption, and has RS485 Modbus (RTU), 4 to 20mA, OCT (NPN), Relay output, and can also be selected LoRa, NB-IoT wireless communication function, which has a wide range of use and can meet the needs of customers for traffic detection.
Features
- There is no need to stop the production line, easy installation and fast data acquisition
- Non-contact measurement, no moving parts, no pressure loss
- Suitable for a wide range of pipe sizes between Ø6 and Ø110 mm
- It can measure stainless steel, carbon steel, copper pipe, PVC, PTFE, PFA, PVDF and other pipe materials
- 2.4″ IPS LCD display for viewing data in low-light environments
- With a perpetual calendar, it can be used for year, month and day cumulative flow viewing
- Built-in RS485 Modbus (RTU), DC 4~20mA, Relay, OCT output signals
- Internet of Things LoRa and NB-IoT wireless communication functions can be selected
Technical Specifications:
| Precision | ±2.0% R.D.(0.3 m/s to 5.0m/s) |
| Reaction speed | 50ms |
| Measuring range | 0.1 m/s to 5.0m/s |
| Parameter setting method | 4-button operation |
| Electrical Specifications | |
| Working power supply | DC 24V |
| Signal output | DC 4 to 20mA； Relay*1；RS485 Modbus(RTU) |
| Display | 2.4 in (60.96 cm) IPS LCD (Display unit: m³/h, LPM, GPM, LPH, ml/min) |
| Digital output | OCT(NPN) |
| Ingress protection | IP65 |
| Mechanical Specifications | |
| Housing material | Aluminum alloy |
| Fixation | Clamp type |
| Environmental conditions | |
| Ambient humidity | 0 % to 95 %RH (non-condensing) |
| Work pressure | ≥3bar |
| Operating temperature | 14°F to 122°F (-10℃ to 50℃)； 14°F to 132°F (-10℃ to 60℃) |
