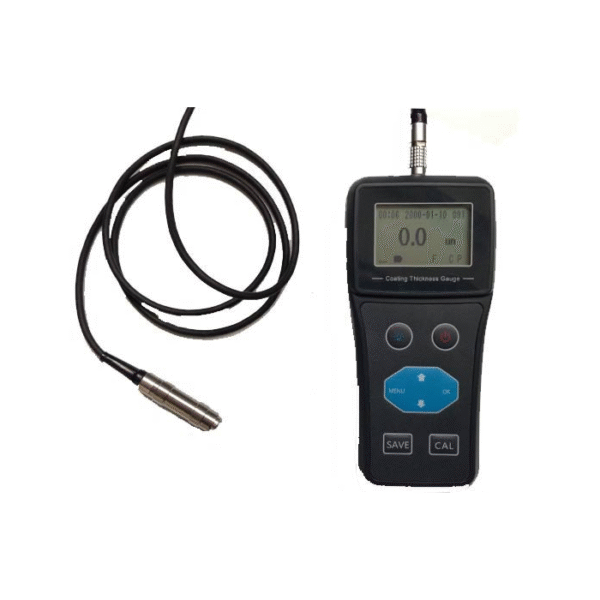

Key Features
- Two kinds of coating thickness measurement principle including magnetic principle and eddy-current principle, available for measuring thickness of the non-magnetic layer covering on magnetic metal and thickness of the non-conductive layer covering on non-magnetic metal.
- High precision mode: multiple measurements and automatically data filtering method to reduce disturbance of measure results
- Temperature compensation: compensate the measurement distortion caused by the drifting of temperature.
- Probe type automatic recognition
Technical Specifications
| Type of Sensor | F | N |
| Principle | Magnetic induction | Eddy current |
| Measuring range(µm) | 0~1500 | 0~1500 Copper covered with chrome plate(0~40) |
| Minimum resolution(µm) | 0.1 | 0.1 |
| One point calibration(µm) | ±(2%H+1) | ± (2%H+1) |
| Two points calibration(µm) | ± [(1~2)%H+1] | ± [(1~2)%H+1] |
| Minimum radius of curvature(mm) | Bulge1.5 | Bulge3 |
| Minimum diameter(mm) | ɸ7 | ɸ5 |
| Critical Thickness of the base(mm) | 0.5 | 0.3 |
