Overview

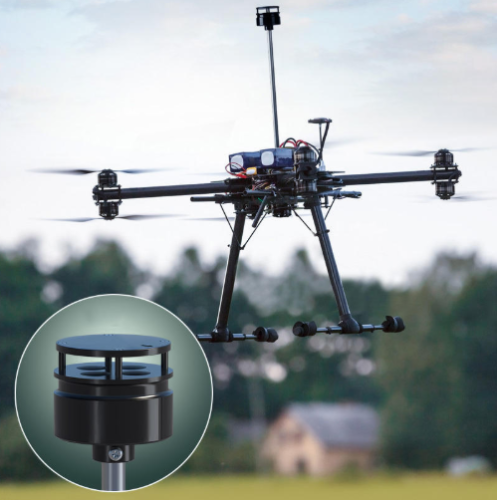

Enviro Testers’s compact micro ultrasonic 5-in-1 weather sensor is designed to monitor wind speed, wind direction, temperature, humidity, and air pressure on small aircraft and unmanned platforms. Its ultrasonic resonance technology enables precise measurement in low-altitude environments. The unit’s compact structure and strong resistance to electromagnetic interference support stable performance across demanding outdoor conditions.
Features
- Ultra-light structure at 0.14 lb (65 g) with a compact 1.81 in (46 mm) diameter
- High resistance to electromagnetic interference with water and dust protection
- Operates at altitudes up to 13,123 ft (4,000 m) and in temperatures from -40 °F to 158 °F (-40 °C to 70 °C)
- Low-power internal components capable of measuring wind speeds up to 134.22 mph (60 m/s)
- Suitable for unmanned aircraft, flight control platforms, and airborne environmental monitoring
- Supports both top-mounted and inverted installation configurations
Technical Specifications
| Parameter | Measurement range | Resolution | Resolution |
| Wind speed | 0 to 134.22 mph (0 to 60 m/s) | ±3% | 0.22 mph (0.1 m/s) |
| Wind direction | 0 to 359° | ±3° | 1° |
| Temperature | -40 °F to 176 °F (-40 °C to 80 °C) | ±1℃ | 0.1℃ |
| Humidity | 0 to 100% | ±5% | 1% |
| Air pressure | 4.35 to 15.95 psi (300 to 1100 hPa) | ±0.015 psi (±1 hPa) | 0.00145 psi (0.1 hPa) |
| Digital output | RS485 | ||
| Baud rate | 4800 to 19200 | ||
| Communication protocol | ModBus or ASCII | ||
| Operating temperature | -40 °F to 158 °F (-40 °C to 70 °C) | ||
| Operating humidity | 0 to 100% RH | ||
| Working altitude | 0 to 1,312 ft (0 to 400 m) | ||
| Dimensions (diameter x height) | 1.81 in x 1.89 in (46 mm x 48 mm) | ||
| Weight | 0.14 lb (65 g) | ||
