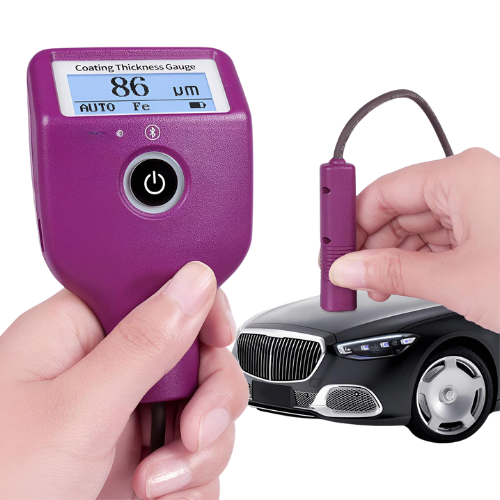

Features
- Compact split-probe for tight spaces.
- Auto-detects ferrous, aluminium, galvanized & non-metallic substrates.
- Tri-colour indicator for thickness condition.
- Wide measuring range: 0–3,500 µm (up to 5,000 µm).
- Ruby-tipped digital probe for high precision.
- Fast 0.3 s readings, 50+ hrs battery, Bluetooth app reporting.
Technical Specifications
| Specification | Details |
| Measurement Principle | Hall effect for ferrous (Fe) / Eddy current for non-ferrous (Al) |
| Probe Type | Split-type external cable probe with ruby tip |
| Measuring Range | 0 to 5000 µm (0 to 5 mm ≈ 0 to 0.20 in) |
| Resolution | 0.1 µm (0–99.9 µm); 1 µm (100–5000 µm) |
| Accuracy | 0–3000 µm: ± (3% H + 2 µm); 3000–5000 µm: ± (5% H + 2 µm) |
| Measuring Interval | ~0.3 seconds per measurement |
| Min. Measuring Area | Diameter Ø = 15 mm ≈ 0.59 in |
| Min. Radius of Curvature | Convex 5 mm (0.20 in) / Concave 25 mm (0.98 in) |
| Min. Substrate Thickness | Fe: 0.2 mm (0.008 in); Al: 0.05 mm (0.002 in) |
| Display | 128 × 48 dot-matrix LCD |
| Power Supply | Rechargeable lithium battery, 3.7 V @ 1200 mAh via Type-C |
| Data Transfer | Bluetooth, compatible with mobile app for report export |
| Operating Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Storage Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Size (Host) | 101 mm × 62 mm × 28 mm (3.98 in × 2.44 in × 1.10 in) |
| Weight (Including Battery) | 76 g (≈ 2.68 oz) |
