Overview

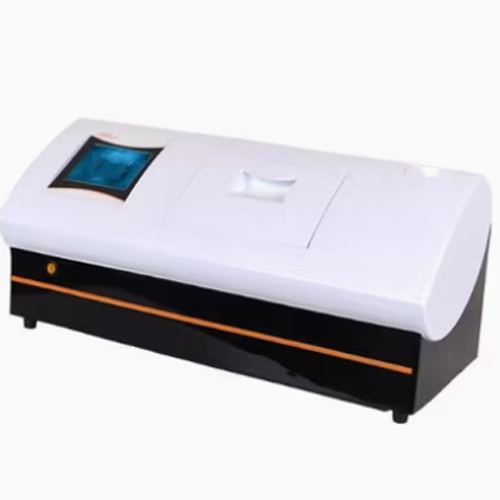

This Digital Automatic Polarimeter offers precise measurement of optical rotation, specific rotation, concentration, and sugar degree. With a ±89.99° range, 0.001° resolution, and ±0.01° accuracy, it’s ideal for laboratory applications. The LED light source ensures long-term stability, while the RS232/USB interface and 1000-data memory support efficient data handling. Compact and reliable, it’s a cost-effective solution for pharmaceutical, food, and chemical industries.
Features
- High-accuracy measurement with 0.001° resolution and ±0.01° precision.
- LED light source with 100,000-hour lifespan for stable performance.
- USB and RS232 interface with 1000-data memory for streamlined lab workflows.
Technical Specifications
| Parameter | Specification |
| Measuring Range | ±89.99° Arc; ±259°Z |
| Measuring Mode | Optical rotation, specific rotation, concentration, sugar degree |
| Minimum Reading | 0.001° (Optical rotation) |
| Accuracy | ±0.01° (−45° ≤ Optical rotation ≤ +45°); ±0.02° (Optical rotation < −45° or > +45°) |
| Repeatability (Standard Deviation) | 0.002° (Optical rotation) |
| Minimum Transmittance | 1% |
| Light Source | LED, with service life exceeding 100,000 hours |
| Wavelength | 589.3 nm |
| Temperature Control | No |
| Interface | RS232, USB |
| Display | 5.6 inch |
| Data Storable | 1000 entries |
| 21 CFR Part 11 Compliance | No |
| Sample Cell | Up to 200 mm |
| Graphic Display | No |
| Power Supply | 220V, 50Hz |
| Calibration System | Optional |
| Rated Power | 250W |
| Net Weight | 24 kg |
