Overview

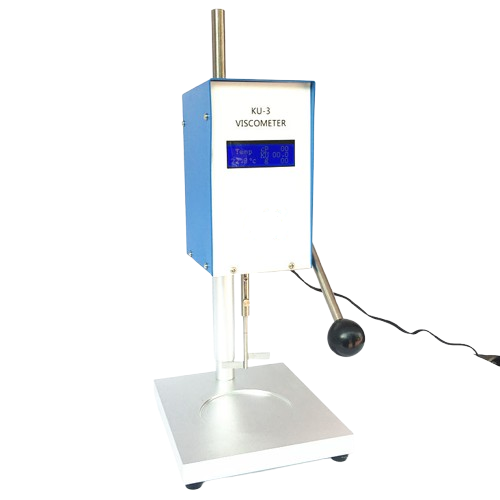

The Digital Krebs Viscometer is a high-precision instrument used for measuring the viscosity of Newtonian and non-Newtonian fluids. This device complies with ASTM D562 and D1131 standards, ensuring consistent and reliable results. It is designed to measure viscosity at a set shear rate, which provides a consistent standard for non-Newtonian materials. This product features a constant speed motor for accuracy and repeatability.
Features
- Displays viscosity in KU, gms or Poise and shows the room temperature
- A constant speed motor ensures accuracy and repeatability
- Quick release chuck allows rapid cleaning of the paddle
- Multipoint calibration across the torque range for optimum accuracy
- Software to connect with a PC to print measurement data
- Self-protection system is inside the device Conforms to ASTM D562 and D1131, ASTM 856
Technical Specifications
| Accuracy | ±2% of full scale (FSR) |
| Repeatability | ±1% |
| Mains | 100 to 240 V, 50 to 60 Hz |
| Viscosity Reading Units | KU, G, CP |
| Speed | 200 rpm |
| Paddle | Standard KREBS-type paddle |
| Interface | RS232 (for PC connection) |
| Viscosity Range (KU) | 40.2 to 141.0 |
| Viscosity Resolution (KU) | 0.1 |
| Viscosity Range (G) | 32 to 1099 |
| Viscosity Resolution (G) | 1.0 |
| Viscosity Range (cP) | 20 to 5250 |
| Viscosity Resolution (cP) | 10 |
| Dimensions | 7.09 in × 8.27 in × 18.50 in (180 mm × 210 mm × 470 mm) |
| Operating Temperature | 50 °F to 104 °F (10 °C to 40 °C) |
| Weight | 17.64 lb (8 kg) |
