Overview

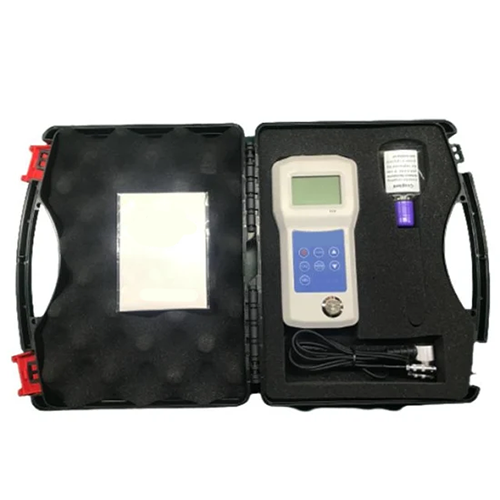

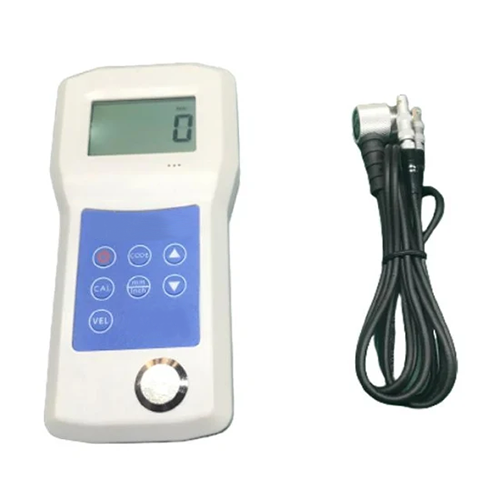

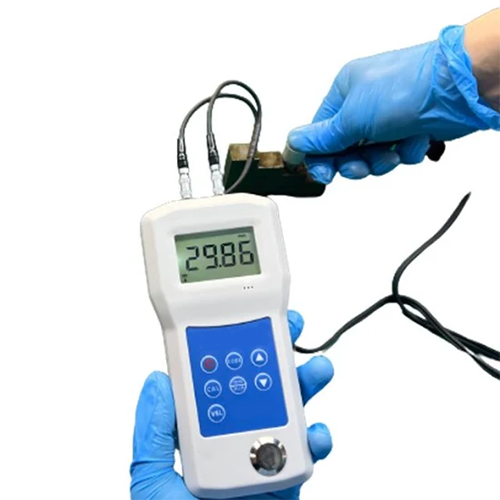

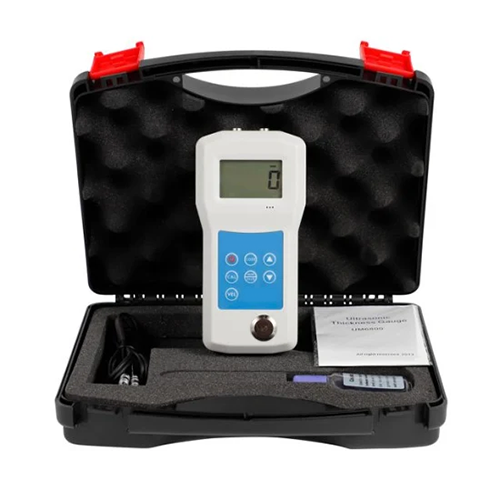

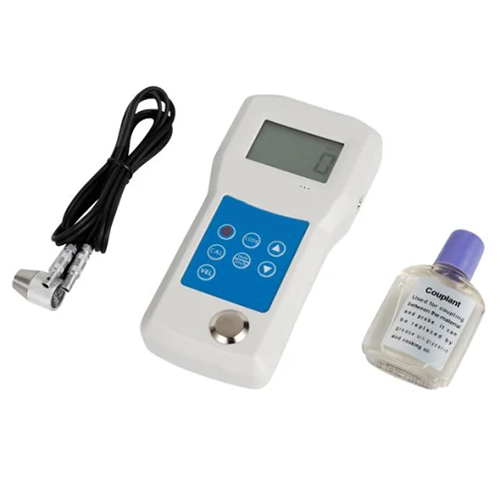

Enviro Testers Accuracy Ultrasonic Thickness Gauge Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.
Features
- High-resolution measurement
- Probe automatic zero calibration for system error correction
- Sound-Velocity-Calibration function
- According to the known thickness measurement Sound-Velocity.
- Status indicator of the coupling and low battery.
- Auto sleep and auto power-off function to conserve battery life.
- Humanized shape design, compact and portable, can be used in harsh environments.
Technical Specifications
| Display | 4.5 digits LCD with EL backlight |
| Measuring range (metric/imperial) | 0.05 in to 11.0 in (1.0 mm to 280 mm) |
| Sound Velocity Range | 16.421 ft/s to 295.559 ft/s. (500 m/s to 9000 m/s) |
| Resolution | 0.0003937 in (0.01 mm) |
| Accuracy | ±(0.05%H+0.1) mm, depends on materials and conditions |
| Units | Metric/Imperial unit selectable |
| Power supply | 4 x 1.5 AAA size (UM-4) battery 1 |
| Battery indicator | low battery indicator |
