Overview
This Agriculture Moisture Analyzer Data Logger has a time setting of 1 min to 99 mins by 10 secs, a PT 100 temp sensor, and a halogen lamp heating source.
Features

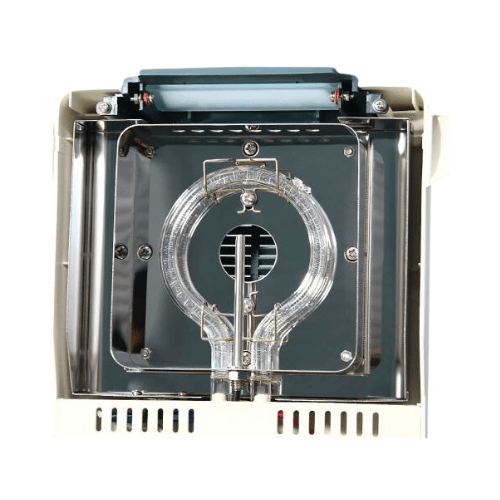

- Halogen lamp, HBM sensor
- Aluminum shell, Stainless steel chamber

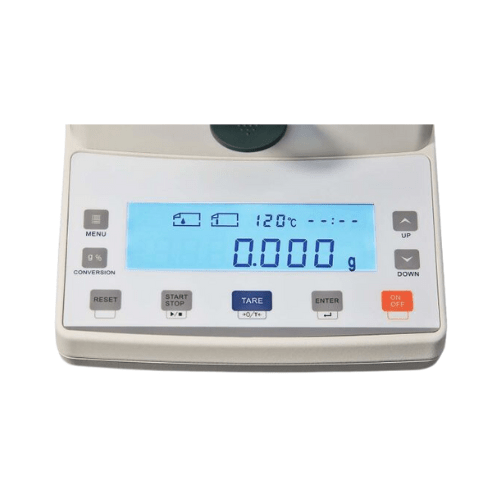

- LCD, White backlight with black font
- Temperature, Time set
- The percentage of moisture content, dry residual
- Store historical set
- Option Aluminum box, Printer, Grinder
Technical Specifications
| Capacity | 3.88092 oz (110 g) |
| Readability | 0.00035274 oz (0.01 g) |
| Display | LCD, White backlight with black font |
| Calibration | External Calibration |
| Interface | RS 232, RJ 45, USB |
| Heating Source | Halogen Lamp 1 |
| Temp Sensor | PT 100 |
| Moisture Range | 0.00% to 100.00% |
| Moisture Readability | 0.2% |
| Dry Range | 100.00% to 0.00% |
| Dry Readability | 0.2% |
| Time Setting | 1 min to 99 mins By 10 sec |
| Number Of Storage | 15 |
| Heater | 220 V ±15% 50 Hz 110 V±15% 60 Hz, 400 W |
| Balance | Input 220 V 50 Hz, 110 V 60 Hz Output 9 V |
| Temp Step | 33.8 ℉ (1 ℃) |
| Temp Setting | 104 ℉ to 390.2 ℉ (40 ℃ to 199 ℃) By 33.8 ℉ (1 ℃) Step |
| Temp Range | 104 ℉ to 390.2 ℉ (40 ℃ to 199 ℃) |
| Operating Temp | 41 ℉ to 95 ℉ (5 ℃ to 35 ℃) |
| Pan Size | 3.54 in (90 mm) |
| Weight | 16.5347 lb (7.5 kg) |
