Features
- LCD Display and multilinguak support
- Versatile unti coversion
- Explosion proof certification

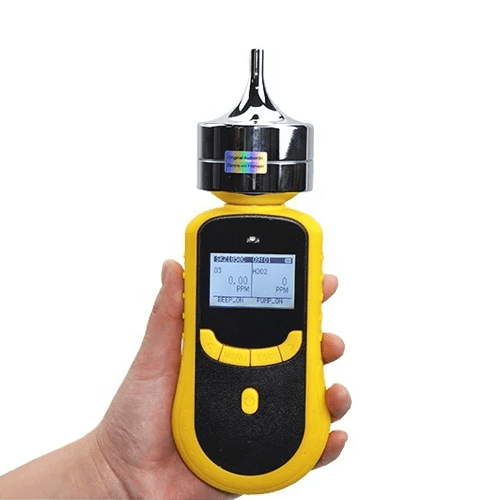

- Arsine gas monitoring
- Calibratrion And Compensation Features
- User friendly opeeration
- Dual stage alarm system
- Recheargable and reliable
Technical Specifications
| Gas Detected | AsH 3 Arsine |
| Detection Principle | Electrochemistry |
| Sampling Method | Pumping suction, flow rate can up to 1 L or min, ten grades of pumping suction for selection |
| Resolution | 0.001 ppm, 0.01 ppm |
| Measuring Range | 0 to 1 ppm, 0 to 10 ppm, 0 to 50 ppm 3 |
| Precision | ≤± 1 % F.S for high precision sensor |
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional) |
| Response Time | ≤10S |
| Repeatability | ≤±1 % |
| Zero Shift | ≤±1 %(F.S or year) |
| Explosion Proof | 2 G ex ia IIC T4 Ga IP 66 |
| Alarm Mode | Sound, Light, Vibration |
| Operating Languange | Chinese or English |
| Recovery Time | ≤10 S |
| Linearity Error | ≤±1 % |
| Display | LCD dot matrix display |
| Degree Of Protection | IP 66 |
| Operating Time | 100 hours (pump off) |
| Humidity | 0 % to 95 % RH |
| Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Dimensions | 8.07 in x 2.95 in x 1.25 in ( 205 mm x 75 mm x 32 mm) |
| Weight | 0.66 lb (0.3 kg) |
