Overview

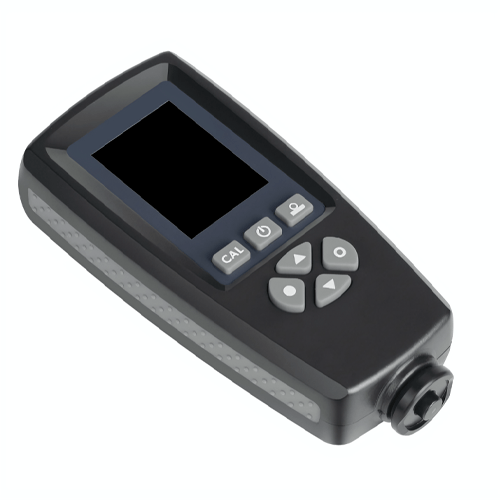

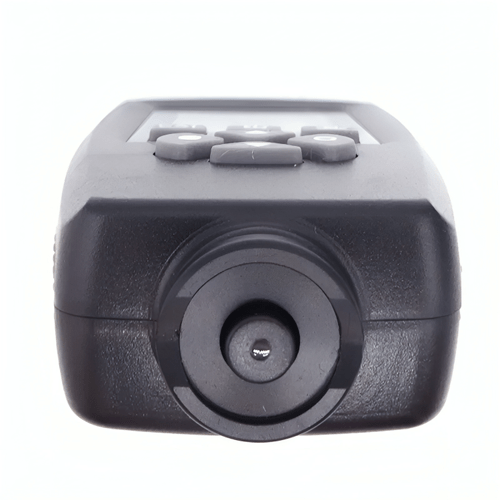

Enviro Testers Auto Coating Thickness Gauge, which can simultaneously measure the magnetic substrate surface (such as steel, iron, etc.) of non-magnetic coatings (e.g., paint, ceramics, chromium, etc.), and nonmagnetic metal non-conductive coatings on the surface of the base material (such as paint, etc.). The instrument is equipped with a high precision double probe and USES the electromagnetic induction and eddy current effect, fully automatic detection of the base material properties, calculates the coating thickness, and displays the results quickly through the dot matrix liquid crystal. At the same time, the measurement data can be saved in groups and display the statistics in real time. Users can set upper and lower alarm value and zero calibration for each group. The new zero calibration makes it very convenient for you to calibrate at any time. Standardize the menu and make sure you use it very easily.
Technical Specifications
| Working Principle | Magnetic Induction | Eddy Current Principle | Magnetic Induction |
| Range | 0 in to 11.81 in | 0.39 in to 11.81 in | 0 in to 19.69 in |
| Accuracy | +2% ± 0.04 in | +2% ± 0.04 in | +2% ± 0.04 in |
| Working Temperature | 0 °F to 104 °F (-17 °C to 40 °C) |
0 °F to 104 °F (-17 °C to 40 °C) |
0 °F to 104 °F (-17 °C to 40 °C) |
| Working Relative Humidity | 20% to 90% RH | 20% to 90% RH | 20% to 90% RH |
| Size | 4.33 in x 2.09 in x 0.94 in (109.9 mm x 53.08 mm x 23.8 mm) |
4.33 in x 2.09 in x 0.94 in (109.9 mm x 53.08 mm x 23.8 mm) |
4.33 in x 2.09 in x 0.94 in (109.9 mm x 53.08 mm x 23.8 mm) |
| Weight | 0.20 lbs (90.71 g) |
0.20 lbs (90.71 g) |
0.20 lbs (90.71 g) |
