Overview

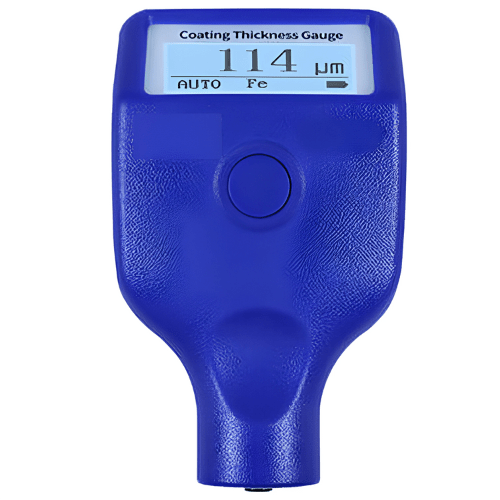

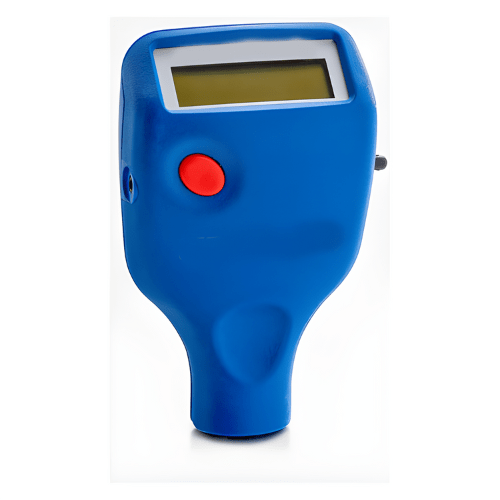

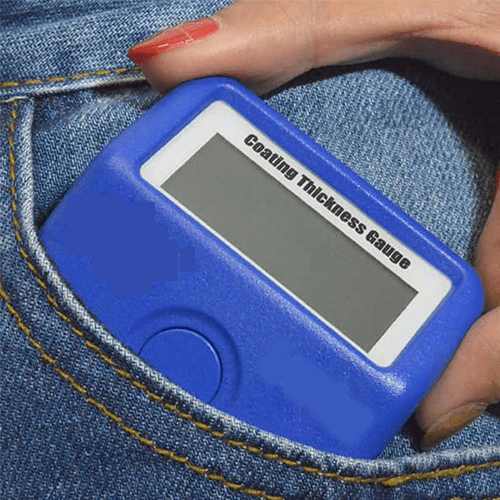

Enviro Testers Automotive Industry Paint Coating Thickness Gauge was developed for a broad spectrum of use in the automobile and painting industries. This compact gauge allows for extremely accurate measurements of paint and corrosion protection thicknesses, both on steel and iron as well as on nonferrous metals such as aluminum, zinc or copper.
Technical Specifications
| Measure Range | Fe 0 to 3000 um, NFe 0 to 3000 ums |
| Accuracy | 0 to 50 ums ≤ ±1um,50 to 1000 um ≤ ±1.5 or 100,1000 to 3000 um ≤ ±2 or 100 |
| Minimum Measurement Area | 0.39 In x 0.39 In (10 mm x 10 mm) |
| Minimum Curvature | Convex Radius 0.2 In (5 mm) Concave Radius 0.98 In (25mm) |
| Minimum Thickness Of Base Material | Fe: 0.0078 In (0.2 mm) NFe: 0.002 In (0.05 mm) |
| Temperature Range | 32 °F to 140 °F (0 °C to 60 °C) |
| Volume | 3.9 In x 2.4 In x 1.06 In (100 mm x 60 mm x 27 mm) |
| Power Supply | Two 1.5V batteries |
