Features
- Has three different measurement modes
- Fluorion electrode range

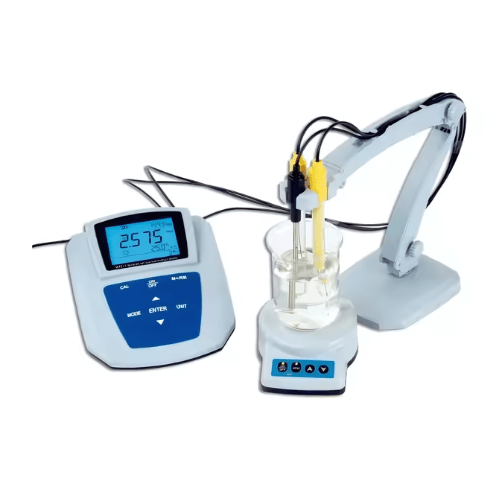

- Equips fluorion electrode, reference electrode and temperature electrode
- Can switch 4 kinds of concentration unit
- Meter only has the product serial number
- Dust proof and waterproof meter meets IP54 requirements
Technical Specifications
| Measuring Range | Meter:(0.00 pF to 9.00 pF)connect meter withElectrode:(1.00 pF to 6.00 pF) |
| Accuracy | ±0.01 PF |
| Input Rurrent | ≤2×10-12 A |
| Input Impedance | ≥1×1012 Ω |
| Stability | ±0.01 pF or 3h |
| mV | |
| Measuring Range | -1999.9 mV to 0 to 1999.9mV |
| Resolution | 0.1 mV |
| Accuracy | ± 0.1% FS |
| Data Storage | 600 groups |
| Storage Content | Measuring value serial number, measuring value,temperature, ATC or MTC state, measuring dateand time |
| Power | DC 9 V or 300 mA |
| Communication Connector | R/S 232 |
| Environment Humidity | ≤85 % |
| IP Rating | IP54 dust proof and waterproof |
| Temperature | |
| Environment Temperature | 41 °F to 95 °F (5 ℃ to 35 ℃) |
| Measuring Range | 14 °F to 230 °F(-10 ℃ to 110 ℃) |
| Resolution | 0.1°F (0.1 ℃) |
| Accuracy | 41 °F to 140 °F (5 ℃ to 60 ℃) range: 32.9 °F (±0.5℃) other range: 33.8 °F (±1.0 ℃) |
| Temp Compensation Range | 32 °F to 122 °F) (0 ℃ to 50 ℃) (automatic ormanual) |
| Size | 6.29 in x 7.48 in x 2.75 in (160 mm × 190 mm ×70 mm) |
| Weight | 1.76 lb (0.88 kg) |
