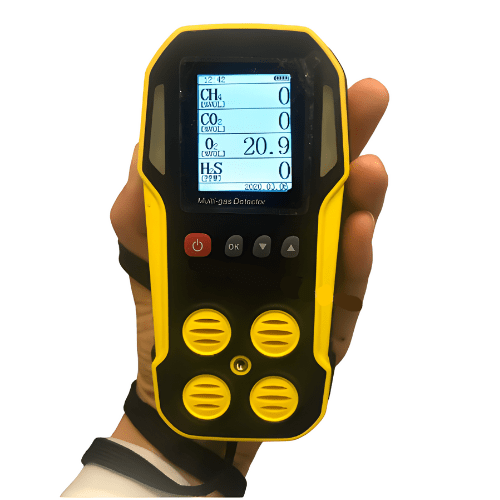

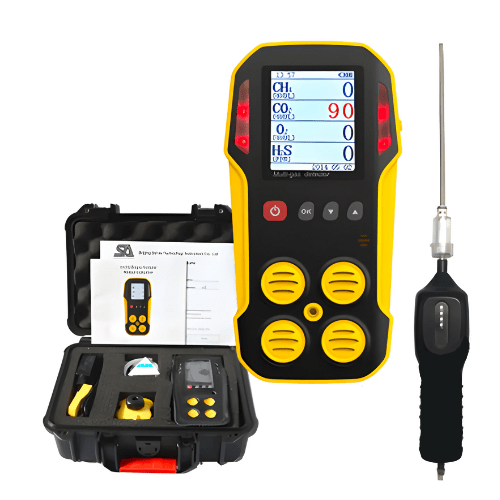

Features
- Handheld, industry use, high sensitivity and accuracy
- Intrinsically safe, Ex sign is ExibdⅠ
- Rugged ABS+PC case, heavy duty, crash resistant
- High-capacity chip, 4 layers PCB board
- Visual & audible alarm
- High & low alarm point, fully adjustable
- Low battery alarm
- Rechargeable battery
- LCD large screen display with Real time clock and status of battery
- With Stainless Steel belt clip
- Support data logging function
- External air sampling pump is available for gas leak detection
- Multi gas detector can be made for any 2-5 gasses in any combination
Technical Specifications
| Test Gases | CH4, CO2, H2S, O2 |
| Gas Ranges | Methane CH4 gas: 0 to 100 % vol Carbon dioxide CO2 gas: 0 to 100 % vol H2s: 0 to 1000 ppm or 0 to 2000 ppm or 0 to 5000 ppm O2: 0 to 30.0 % VOL |
| Precision /Accuracy | 1% VOL for CH4 to CO2 1 PPM for H2S 0.1 % VOL for O2 |
| Sampling Method | Natural diffusion type |
| Alarm type | Visible, Sound Vibration |
| Chargeable Battery | PL123450, 3.7 V/ 1500 mA Rechargeable Lithium Battery |
| Display | LCD Display with backlight |
| Alarm Mode | Sound & Light Alarm; Full range adjustable |
| Explosion-Proof | Intrinsically safe, Exibd I(CMExC) |
| Degree Of Protection | IP54 |
| Operating Temperature | -13 °F to 131 °F, Short time: -40 °F to 131 °F (-25 ℃ to +55 ℃, Short time: -40 ℃ to +55 ℃) |
| Size | 5.11 in x 2.59 in x 1.18 in (130 mm x 66 mm x30 mm) |
| Weight | 0.99 lb (450 g) |
