Overview

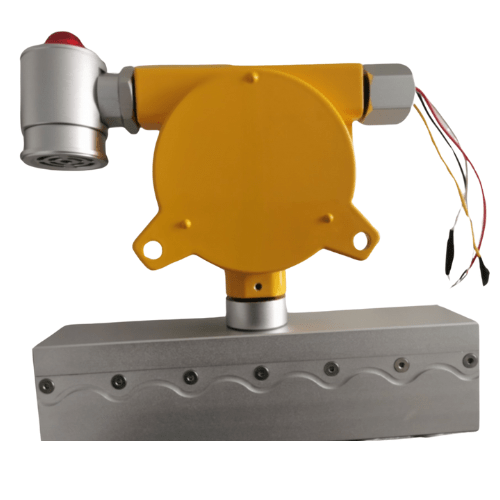

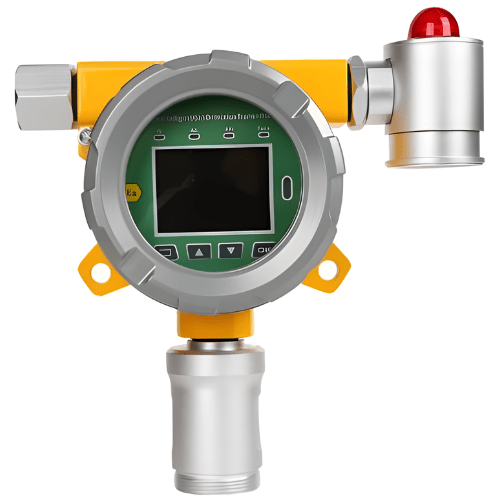

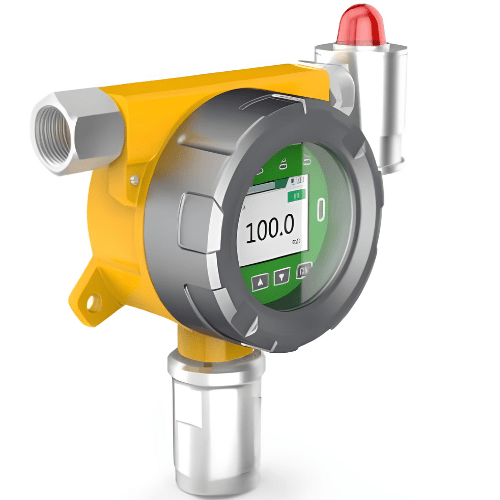

Enviro Testers carbon dioxide tester uses the most advanced large scale integration circuit, and international standard intelligence technology to ensure well performance, high stability and excellent communication ability. Digital signal combine with analogue signal and its high stability makes our detector extremely satisfied the requirement of technical grade environment safety monitor. Our detector is wildly used in variety industry including oil, chemical, metallurgical, refinery, liquefied natural gas transportation and bio-pharmaceutical. It can compatible with all kinds of controlling device, PLC and DCS etc, allow remote monitoring, control and alarm.
Features

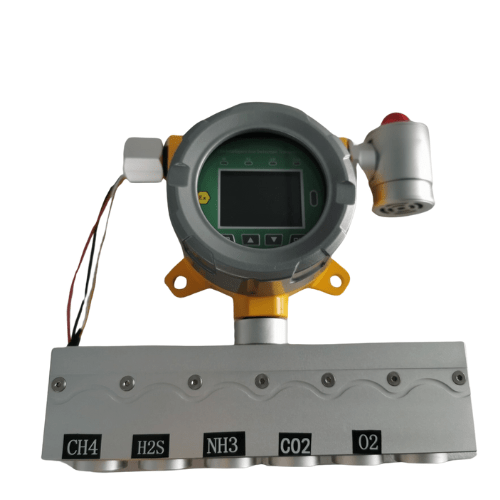

- Up to 6 Compound Gases Detection
- Multiple Signal Outputs
- Multiple Transmission Modes
- Multiple Data Receiving Methods
Technical Specifications
| Detection Gas | CO2 |
| Sensor | Electrochemistry |
| Detection Pattern | Diffusion, Circulation, Pumping is available, Online detection |
| Detection Accuracy | ≤ ± 3% FS |
| Linearity Error | ≤ ± 1% FS |
| Zero Drift | ≤ ± 1% (FS/Year) |
| Repeatability | ≤ ± 1% FS |
| Recovery Time | Less than 20 Seconds |
| Relay | Two relays output |
| Explosion Proof | ExdII CT6 |
| IP Rating | IP65 |
| Connection | 3/4″NPT, 1/2″NPT |
| Material | Aluminum |
| Humidity | ≤ 95% RH |
| Pressure | 0 PSI to 29 PSI (0 kPa to 200 kPa) |
| Temperature Range | -22 ºF to 140 ºF (-30 °C to 60 °C) |
| Dimensions | 7.8 in x 6.2 in x 3.1 in (200 mm x 160 mm x 80 mm) |
| Weight | 3.3 lb (1.5 kg) |
