Overview

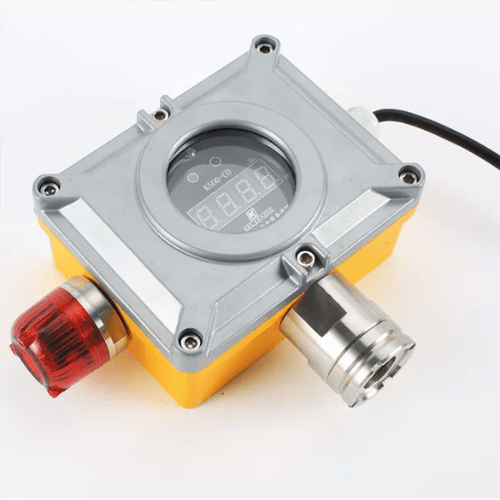

Gas detector is a device with long service life, adopting extremely sensitive imported sensors and explosive-proof design. It also works as part of an integrated system (with 4 to 20 mA analogy output) or as a standalone system only, two discrete alarm levels (high & low), audible and visual alarm.
Technical Specifications
| Power Supply | DC 24 V or AC 220 V or 50 Hz |
| Output Signal | 4 to 20 mA standard industrial signal output |
| Show | LED backlight |
| LED Display With Backlight | 4-digit gas value |
| Relative Humidity | 15% to 90% relative Humidity (non-condensing) |
| Air Pressure | 86 to 106 kPa |
| Explosion-Proof Quality | Ex d IIC T6 |
| Alarm Low | 25 ppm |
| Case Material | Aluminum alloy and stainless steel |
| Operating Temperature | -4 ºF to 131 ºF (-20 ºC to 55 ºC) |
| Size | 6.30 in x 4.96 in x 3.07 in (16 cm x 12.6 cm x 7.8 cm) |
| Weight | 7.71 lb (3.5 kg) |
