Overview

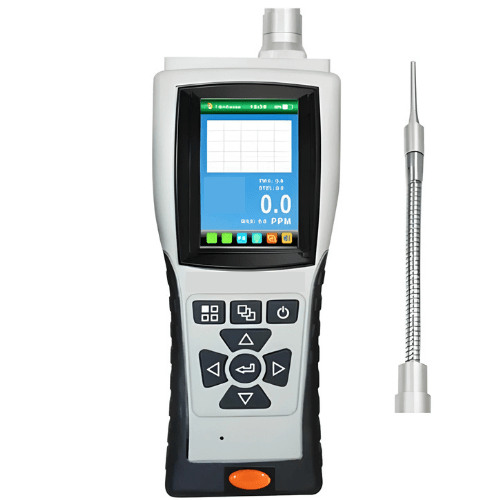

Enviro Testers co2 ndir gas detector Is a continuous monitoring of a variety of single gasdetection equipment. This product is suitable forenvironmental monitoring, industrial production andother harmful gases workingenvironment, whichcan effectively protect the health and safetyof staff is not compromised.
Features
- Smart probe design
- Calibration and Maintenance more convenient in the future
- Fault, Warning, operator error, and alarm will be smart tips
- Built-in CF calibration coefficients (VOC measurements only valid)
- Audible and visual alarm function
- The status bar also displays alarm status
- Full-color 3.5-inch TFT screen, color LCD
- Both digital and curve displays of gas concentration
- USB communication port
- 9600 speed bytes to communicate with the computer
- Test record function
- Can store a month’s measurement data and instrument
- Computer can view the data
- Alarm recording function
- Calibration record
- High-capacity lithium battery-powered, rechargeable, low-battery automatic shutdown
- Can be set high reported, underreporting, TWA, STEL
- Can be set shutdown time, pump speed
- Indication: LCD real-time concentration, LED, buzzer alarm
Technical Specifications
| Test Range | Related to the gas type |
| Resolution | Related to the range |
| Precision | ±5% FS |
| Response Time | <20 S |
| Indicate Way | LCD display real-time concentration , LED, buzzer alarm |
| Data Storage | Can store multiple sets of data |
| Pressure Range | Atmospheric pressure 10% |
| Continuous Work Hours | 30 hours and above |
| Charge Time | 6 hours to 8 hours |
| Protection Class | IP65 |
| Power Supply | Lithium battery (4.2 V or 3000 mAh) |
| Installation | Handheld or Stand-in |
| Housing Material | PC |
| Operating Current | Normal current: ≤ 150 mA; Alarm current: ≤ 200 mA |
| Response Time | T 90 S < 10 S |
| Relative Humidity | 15% to 95%, non-condensing |
| Relative Humidity | ≤ 90%, no condensation |
| Operating Environment | Temperature -40 ℉ to 158 ℉ (-40 ℃ to 70 ℃) |
| Storage Environment | Temperature: -4 ℉ to 140 ℉ (-20 ℃ to 60 ℃) |

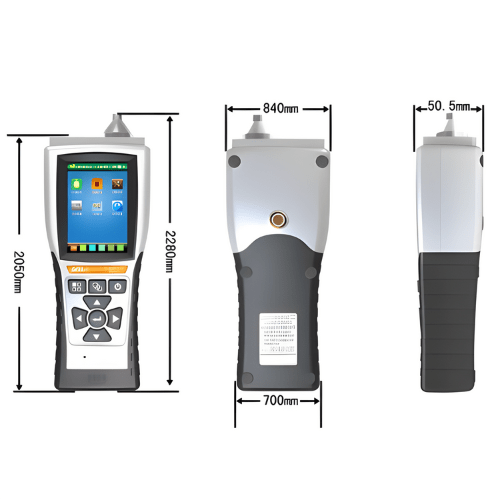

| Dimensions | 9.0 in x 3.3 in x 2.0 in (228 mm x 84 mm x 50.5mm) |
| Weight | 1.21 Ib (0.55 kg) |
