Overview

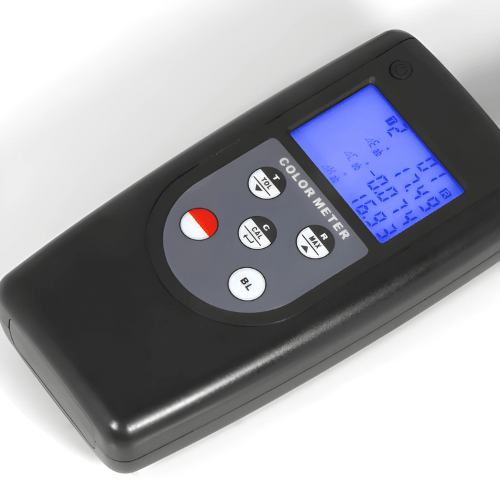

Enviro Testers colorimeter food paint textile is an extremely compact, extremely easy-to-use tristimulus color meter specially designed for measuring the color difference between two colors. The meter is designed for measuring the color of non-fluorescent samples such as textile, paper, leathers, painting materials, etc. It is a useful tool for quality control and wide industrial application.
Features
- User calibration function ensures higher accuracy
- Auto memory (99 sets) & Read function
- Digital backlight display
- Auto power off function
- Applies USB, Bluetooth data output

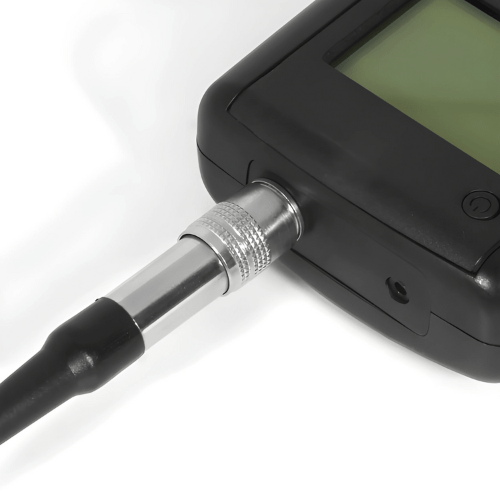

- Use USB data output to connect with PC
- Provide Bluetooth data output choice
Technical Specifications
| Color difference displayed | (L x, a x, b x), (E x ab, C x ab, H x ab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) |
| Color space displayed | (L x, a x, b x), (L x, C x ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw) |
| Display | Triple 4-digit LCD Display |
| Auto power off | Approx. 3 minutes |
| Data memory capacity | 99 set. (Direct reading from LCD display) |
| Illuminating or Viewing geometry | 45° or 0° Illumination at 45°, measurement at 0° |
| Target color memory | 9 channels, set by measurement or keypad |
| Measuring range | L × 5 to 100 |
| Measurement conditions | Observe CIE 2° Standard Observer |
| Illuminant | White LED lamp |
| Repeatability | Standard deviation within AE x ab 0.5 (Measurement conditions Average of measurements of standard white plate) |
| Minimum interval between measurements | Approx. 2 seconds |
| Optional Accessories | USB Data Cable with Software |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity | < 85% RH |
| Storage temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Humidity | < 70% RH |
| Power source | 4 x 1.5 AAA (UM-4) Battery |
| Dimensions | 5.5 in x 2.9 in x 1.4 in (140 mm x 73 mm x 35 mm) |
| Weight | 7.76 oz (220 g) |
