Overview

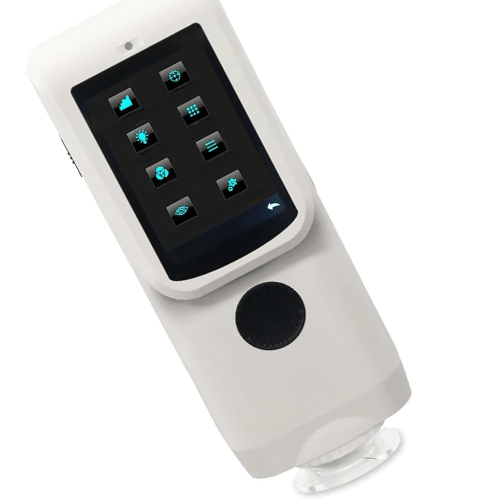

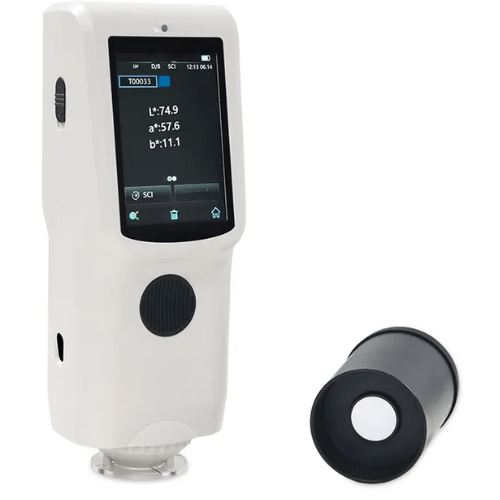

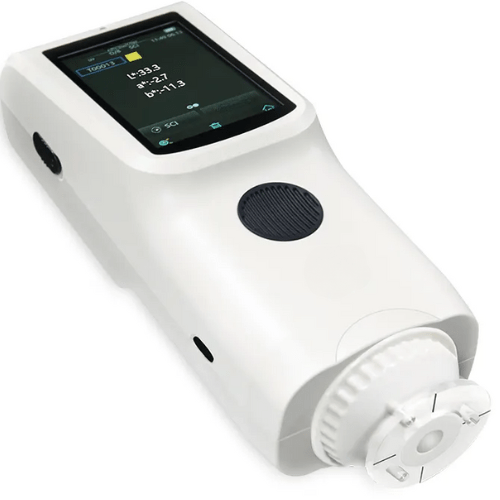

Enviro Testers colorimeter precision digital laboratory equipment is a new portable spectra-colorimeter with own core research and development technology. It is the high-level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time anywhere. Using built-in silicon photodiode array (double row group 24) sensors, imported whiteboard, repeatability E x ab is easily controlled within 0.1. The measurement speed and convenience of the operation makes it easy to use. With powerful functions and 0.32 in (8 mm) aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
Technical Specifications
| Integrating Sphere Size | 1.57 in (40 mm) |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 24 groups) |
| Wavelength Range | 400 nm to 700 nm |
| Semi band Width | 10 nm |
| Measured Reflectance Range | L 0 to100 reflectivity the reflectivity can be measured at 1 specific wavelength specified by the user (default 550 nm) |
| Measuring Aperture | 0.32 in (8 mm) |
| Specular Component | SCI |
| Observer Angle | 10° |
| Illuminant | D65, A, F2 (CWF) |
| Displayed Accuracy | 0.1% |
| Measuring Time | About 1.5 second |
| Measurement Mode | Single Measurement, Average Measurement (2 times to 99 times) |
| Locating Method | Stabilizer cross position |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5 in (8.89 cm) TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Altitude | <1.2 mi (<2000 mi) |
| Operating Environment | 32 ºF to 104 ºF (0 ºC to 40 ºC) |
| Storage Environment | -4 ºF to 122 ºF (-20 ºC to 50 ºC) |
| Humidity | 0% to 85% RH (no condensing) |
| Dimension | 3.18 in x 2.79 in x 8.43 in (81 mm x 71 mm x 214 mm) |
| Weight | 16.23 oz (460 g) |
