Overview

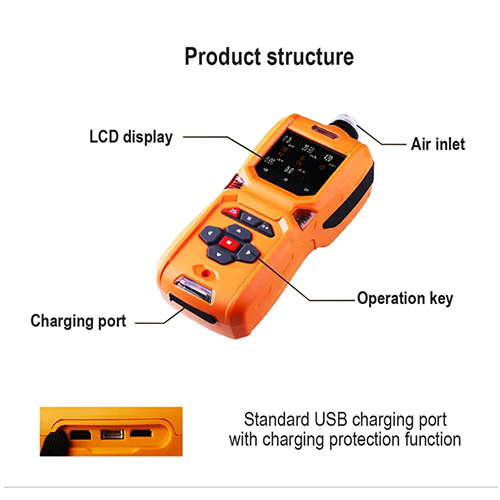

Enviro Testers Combustible Gas Detector has graphical display and uses the form of curve to reflect the trend of gas concentration changes in a certain period. Data recovery function; in case of mis-operation, it is possible to select partial or full recovery. It is possible to set whether to display the maximum value, minimum value, average value or not. Standard USB charging port, with charging protection function, USB hot plug supported, and the charging status instrument can work properly. 4600 mA high-capacity rechargeable polymer battery is adopted, so it is possible to work for a long period of time. High-precision temperature and humidity measurements (optional configuration).
Features
- Adopted advanced electric circuit design.
- Mature kernel algorithm processing.
- Unique external appearance design.
- Had achieved a few patents about the software works

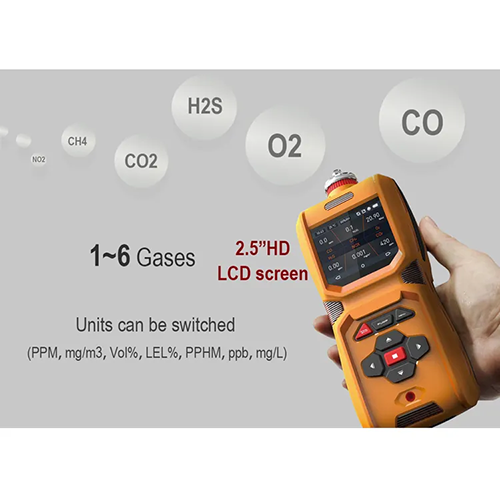

- Possible to simultaneously detect 1 to 6 types of gases
Technical Specification
| Gases to be detected | Arbitrary combination of 1 to 6 types of gases such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on |
| Application scenarios | All the cases which require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on |
| Detection range | 0 ppm to 1 ppm, 10 ppm, 100 ppm, 1000 ppm, 5000 ppm, 50000 ppm, 100000 ppm, 200 mg/L, 100 % LEL, 20 % Vol, 50 % Vol, 100 % Vol, can be selected; and other ranges can be customized. |
| Resolution | 0.01 ppm or 0.001 ppm (0 ppm to 10 ppm); 0.01 ppm (0 ppm to 100 ppm), 0.1 ppm (0 ppm to 1000 ppm), 1 ppm (0 ppm to 10000 ppm or more), 0.01 mg/l (0 mg/l to 200 mg/l), 0.1 % LEL, 0.01 % LEL 0.001 % Vol |
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on |
| Allowable error | ≤ ± 1 % F.S (other precision levels can be customized) |
| Linearity | ≤ ± 1 % |
| Repeatability | ≤ ± 1 % |
| Uncertainty | ≤ ± 1 % |
| Response time | T90 ≤ 20 seconds |
| Recovery time | ≤ 30 seconds |
| Working Humidity | ≤ 10 % RH to 95 % RH |
| Power supply | 3.6 V DC, 6000 mA high-capacity rechargeable polymer battery |
| Display mode | 2.5-inch high-definition color screen |
| Detection mode | Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, to ensure that the excessive gas will be discharged from the bypass |
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm. |
| Communication interface | USB (charging and communication), optional: RS232, infrared communication, automatic recognition |
| Data storage | Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration |
| Protection level | IP67 |
| Explosion-proof type | Intrinsically safe type |
| Explosion-proof mark | Exia II CT6 |
| Sample gas temperature | – 40 °F to 158 °F (- 40 ℃ to 70 ℃),
and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 2372 °F (1300 ℃). |
| Working Temperature | – 40 °F to 158 °F (- 40 ℃ to 70 ℃) |
| Exterior dimensions | 7.08 in x 3.07 in x 1.29 in (18 cm × 7.8 cm × 3.3 cm) |
| Weight | 12.35 oz (350 g) |
