Overview

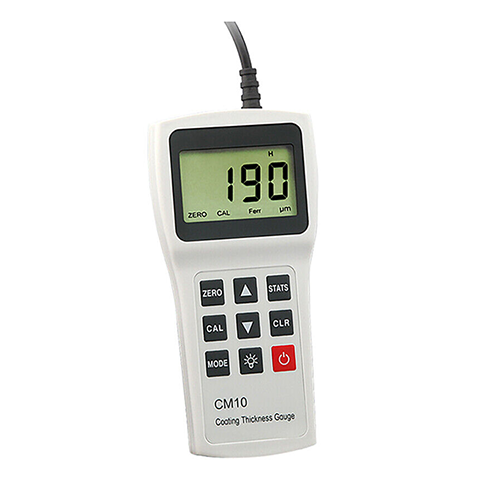

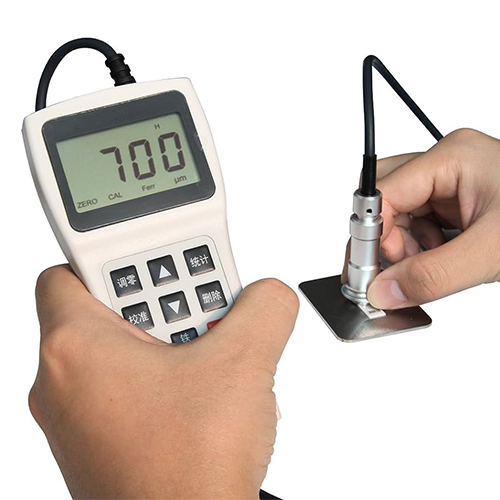

Enviro Testers compact digital painting thickness gauge tester is one of the popular models of digital painting coating thickness gauge tester. Which equips with combined ferrous and nonferrous probe, adopting both magnetic measuring method and eddy current measuring method to measure the thickness of non-magnetic coatings on magnetic metal substrates as well as non-conductive coatings on non-magnetic substrates.
Features
- Standard data processing software and USB cable, enable to connect to PC for further data analysis and data print
- Dual used probe, combined with ferrous and non-ferrous probe
- Wide measuring range of ferrous probe
- Multiple statistics function: Measuring Times, Max, Min, Average, and Standard Deviation
- High Contrast Segment Liquid Crystal Display (LED Backlight)
- Suitable for both One-Point Calibration and Two-Point Calibration
- Auto off after 3 minutes of inactivity to save power
- Excellent after-sale service system for high quality products. Easy to buy and convenient to use
Technical Specifications
| Measuring Principle | Magnetic And Eddy Current Method |
| Measuring Range | Probe: 0 μm to 3000 μm |
| Indication Resolution | 0.1 |
| Indication Error | ±(2% H + 2 μm) |
| Repeatability | ±(1% H + 1 μm) |
| Display | High Contrast Segment Liquid Crystal Display (display only figure) (LED Backlight) |
| Statistics Function | Measuring Times, Max, Min, Average, and Standard Deviation |
| Calibration Mode | One point and Two Point |
| Power Supply | Two AA size batteries, low-voltage indication function |
| Auto Power off | Auto off after 3 minutes of inactivity |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃),
-4 °F (-20 ℃) in special requirement |
| Dimension (L x W x H) | 11.81 in x 9.06 in x 3.15 in (300 mm x 230 mm x 80 mm) |
| Packing Weight | 4.41 lb. (2 kg) |
