Overview

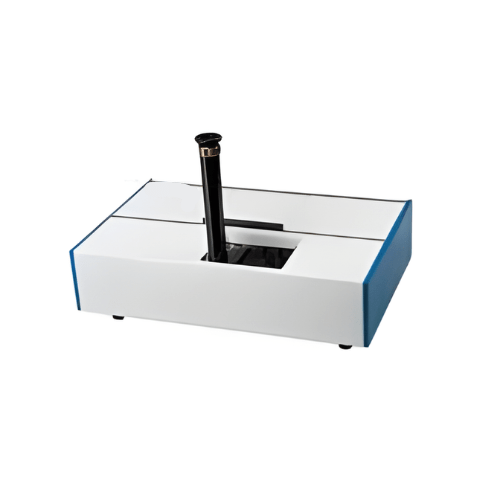

Enviro Testers comparative lovibond colorimeter is a visual colour measuring instrument, which uses the internationally recognized special colour scale-Lovibond colour scale to measure the colour of various liquids, colloids, solids and powder samples. Chroma. The instrument has the characteristics of simple structure and convenient operation. It is often used for colour measurement of different substances such as grease, paint, plastic, jam, textile, and grain.
Technical Specifications
| Measuring range | Red R 0.1 R 79.9 Lovibond Yellow Y o.1-Y79.9 Lovibond Blue B 0.1 – B 49.9 Lovibond Neutral grey N 0.1 – N3.9 Lovibond |
| The minimum value | 0.1 Lovibond |
| Diffuse reflectance of whiteboard | > 80% |
| Magnifying glass power | 1.9 x |
| The power supply | 220 V ± 22 V, 50 Hz ±1 Hz, 50 W |
| Dimension of colour plate | 0.39 in x 0.79 in x 1.57 in (10 mm x 20 mm x 40 mm) 1 in x 0.79 in x 1.57 in (25.4 mm x 20 mm x 40 mm) 5.25 in x 0.79 in x 1.57 in (133.4 mm x 20 mm x 40 mm) |
| Size of Instrument | Host 19.69 in x 12.59 in x 5.12 in (500 mm x 320 mm x 130 mm) Observation tube φ 1.18 in x 8.46 in (30 mm x 215 mm) |
| Instrument Net Weight | 17.64 lb (8 kg) |
