Overview

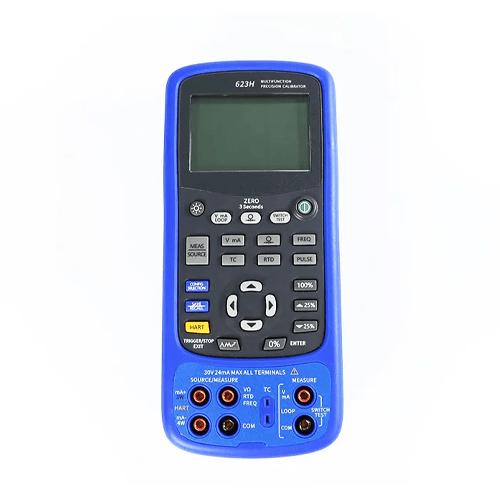

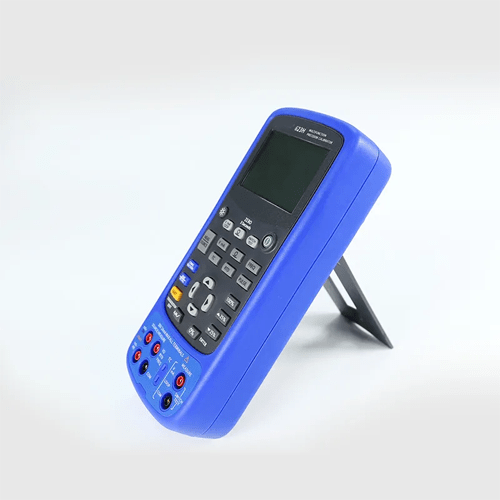

Enviro Testers current voltage resistance process calibrator is well designed and is suitable for process industries that focus on wide workloads and calibration capabilities. It can measure and simulate almost all process parameters with high precision, and accurately calibrate almost all process parameters. It is also suitable for higher metrology requirement
Features
- Accurately measure and stimulate output performance with an accuracy of 0.01%
- Wide measurement range and output capacity
- Two independent channels, allows simultaneously measure
- Output and view process signals
- Measure signals such as voltage or mA or RTD or thermocouple
- Measure signals such as Frequency or pulse and resistance
- Output and simulate these signals for transmitter calibration
- Use synchronized pressure measurements
- Output mA signals to perform valve and l or P testing
- Use auto step and auto ramp function to quick perform linearity tests
- Use 24 V loop power to power the transmitter while measuring mA
- HART communication function, 232 and Bluetooth
Technical Specifications
| Voltage | Range 0 mV to 100 mV Resolution 0.01 mV Accuracy 0.01%+10 uV Range 0 V to 20 V, 0 V to 30 V Resolution 1 mV Accuracy 0.01% + 2 uA |
| Current | Range 0 mA to 24 mA Resolution 1 uA Accuracy 0.01% + 2 uA |
| Voltage (TC) | Range -10 mV to 75 mV Resolution 0.01 mV Accuracy 0.01%+10 uV |
| Resistance | Range 5 Ω to 400 Ω Resolution 0.01 Accuracy 0.01%+0.05 Ω Range 400 Ω to 4000 Ω Resolution 0.1 Accuracy 0.01%+0.5 Ω |
| Frequency | Range 2 CPM to 1000 CPM Resolution 0.1 Accuracy 0.05%+0.1CPM Range 1 Hz to 1000 Hz Resolution 0.1 Accuracy 0.05%+0.1 Hz Range 1 kHz to 15 kHz Resolution 0.01 Accuracy 0.05%+0.1 kHz |
| Thermal Resistance | Range NI100(618) or NI100(672) or PT100(385) or PT100(3916) or PT100(3926) or PT200(385) or PT500(385) or PT1000(385) or Cu10(427) or Cu50(428) or Cu100(428) Resolution 0.01 Accuracy 32.27 °F (0.15 °C) |
| Pulse Output | 0 to 10000 |
| Pulse Measurement | 0 to 100000 |
| Use time | 30 hrs |
| Power | 5 AA alkaline batteries |
| Size | 8.19 in x 3.74 in x 1.77 in (208 mm x 95 mm x 45 mm) |
| Weight | 1.34 lb (610 g) |
