Name: Enviro Testers DC Voltage and Current Loop Multimeter Calibrator - Enviro Testers
SKU: ETEDVTPC-108

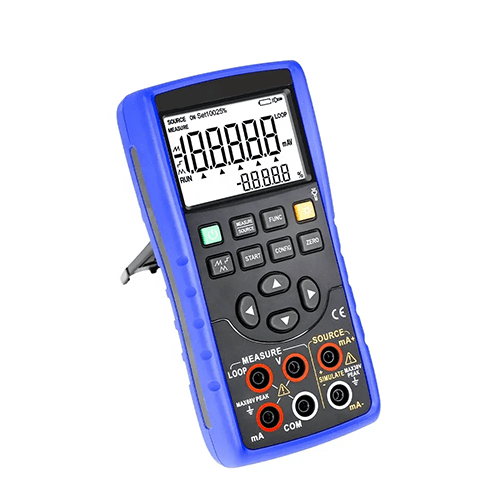

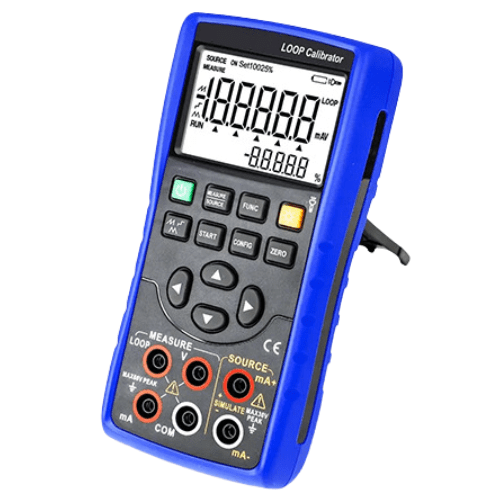

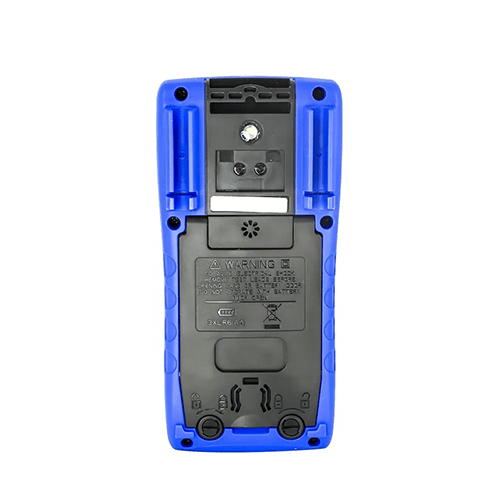

Enviro Testers DC Voltage and Current Loop Multimeter Calibrator

This DC Voltage and Current Loop Multimeter Calibrator has power supply of 2 × 1.5 V AA Alkaline battery, Loop power of 24 V, and DC voltage of 30 V.

SKU: ETEDVTPC-108 Category: Temperature & Process Signal Calibrators

Features

Measurement with basic accuracy of 0.02%
Output with basic accuracy of 0.05%. 5 digits display for measured value
Measurements DC current, DC voltage
Provides 24 V loop voltage and measuring current simultaneously
Analogue output DC current and simulating transmitter
Providing loop voltage supply of 24 V
Current displayed in Am and Am% format
The step, zero and full output provided with a fast operation.
Output signal generates an auto ramp current output 4 mA to 20 mA
The step, zero and full output provided with a fast operation
Adjustable output gain
Built-in self-tests with closed-case calibration, no internal calibration adjustment

Technical Specifications

Measurement	DC voltage	Range 30 V Resolution 0.001 V Basic accuracy 0.02%+2dgt
	DC current	Range 30 mA Resolution 0.001 mA Basic accuracy 0.0%+4
Source	DC current	Range 22 mA Resolution 0.001 mA Basic accuracy 0.05%+4dgt
	Loop power	24 V
Power Supply		2 × 1.5 V AA Alkaline battery
Size		7.09 in x 3.54 in x 1.85 in (180 mm × 90 mm × 47 mm)
Weight		About 1.10 lb (500 g)
