Overview

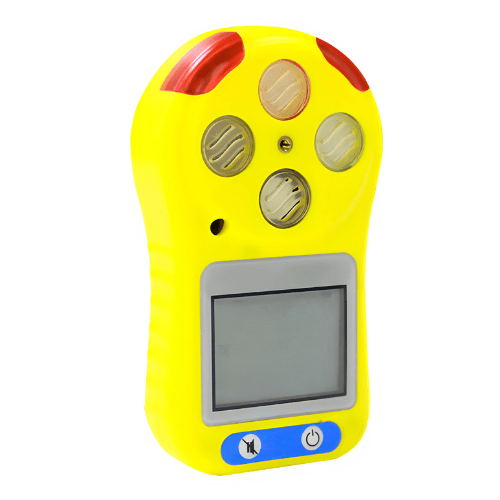

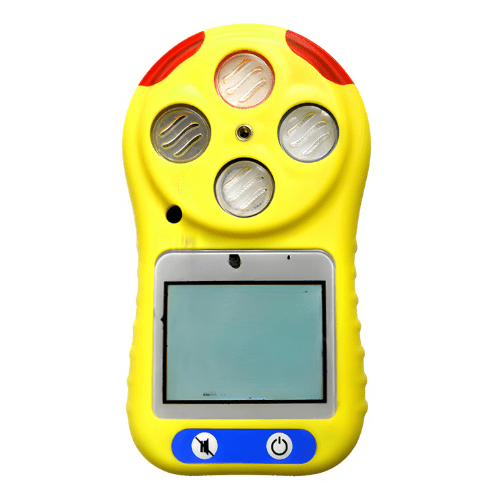

Enviro Testers detector measurement analyzer is a new type of detector for detecting gas leakage from gas pipelines, gas valves, and other possible places. with imported high quality semi-conductor sensor and embedded microcontroller, it has very high sensitivity, excellent man-machine operation interface and various adaptive ability. The housing of the detector is made of high strength engineering plastics and compound anti-slip rubber. It is waterproof, dustproof, and has a good handle.
Features
- Alarm Indicator for concentration exceeds
- Gas detection port carbon monoxide and combustible gas body

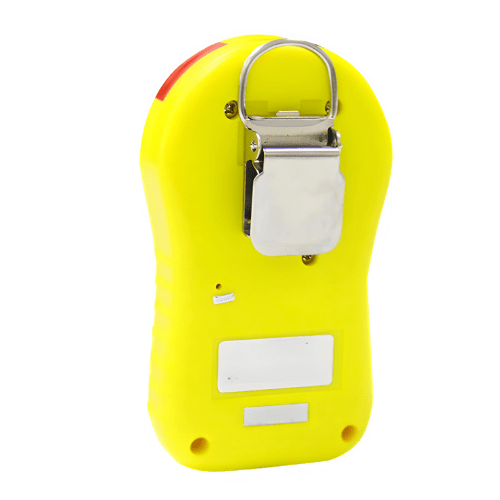

- Anti- skid protection chain for preventing
- Use of instruments slip in the process
- Gas concentration concentration display accurate of field gas
- LCD screen display
- Alarm horn sound of 90 Db
- Fixer cover portable detector
- Muffler buttons turn off the sound of the instrument
- Switch key for long press 3s and turn off
Technical Specifications
| Sampling Method | Diffusion type |
| Detecting Range | CO: 0 ppm to 1000 ppm H2S: 0 ppm to 100 ppm O2: 0 to 30 % vol Combustible Explosive Gas (Ex or LEL or CH4): 0 to 100 % LEL |
| Sensor | O2 /H2S / CO: plug-in electrochemical sensor Combustible gas (LEL): plug-in catalytic combustion sensor |
| Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
| Resolution | 0.1 % VOL (O2), 1 ppm (CO), 0.1 ppm (H2S), 1% LEL (EX) |
| Accuracy | 5 % F.S |
| Response Time | 10 s |
| Repeatability | 1 % |
| Zero Drift | 1 % |
| Display | LCD displays the real time gas concentration and alarm stage |
| Self-Checking Function | Self-checking Battery power, display, sensor, hardware failure |
| Explosion-Proof | EXiaIICT4 |
| Protection Grade | IP65 |
| Power Supply | Rechargeable lithium battery |
| Operating & Storage Environment | Temperature: – 4 °F to 122 °F (-20 °C to 55 °C) Humidity: 5 % to 95 % (Relative humidity non-condensing) Pressure: 95 kPa to 110 kPa |
| Dimensions | 4.92 in x 2.75 in x 1.85 in (125 mm x 70 mm x 47 mm) |
