Overview

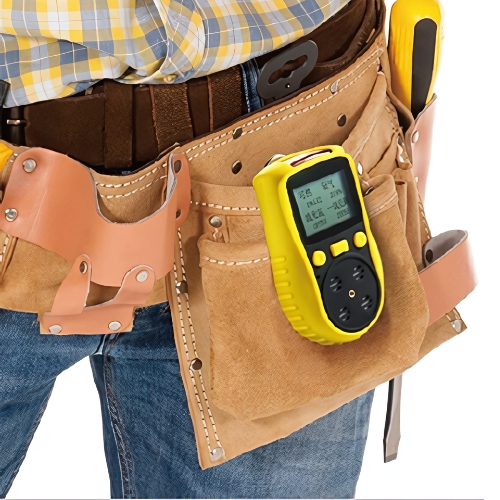

Enviro Testers diffusion type multi gas detector – alarm data recording is a kind of mini size and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure 4 common gas hazards: carbon monoxide, hydrogen supplied, flammable gases and oxygen depletion, other multi gases are available for customization. The detector is a back clip, protected by a silicone case, suitable for different kinds of situations.
Features
- LCD Display
- Language Options
- Quick unit shift
- Easy battery check
- Comprehensive alarm
- Alarm data recording
- Data storage
- Long-lasting battery
- Convenient clip
- Durable housing
Technical Specifications
| Gas Detected | CO, O2, H2S, CH4 |
| Detection Principle | Electrochemistry & Catalytic combustion |
| Sampling Method | Diffusion |
| Measure Range | 0 % VOL to 30 % VOL (O2) or 0 ppm to 100 ppm (H2S) or 0 ppm to 1000 ppm (CO) or 0 % LEL to 100 % LEL (CH4) |
| Resolution | 0.1 % VOL (O2) / 0.1 PPM (H2S) / 1 ppm (CO)/1 % LEL (CH4) |
| Precision | ≤ ± 2 to ≤ ± 5 % F.S. |
| Data Recording | Storage capacity of over one hundred thousand sets. Interval time ranges from 10 seconds to 3600 seconds are settable. |
| Response Time | ≤ 10 S |
| Repeatability | ≤ ± 1 % |
| Zero Shift | ≤ ± 1 % (F.S/year) |
| Explosion-Proof | Exiia IICT4 |
| Alarm Mode | Sound, light, vibration |
| Recovery Time | ≤ 10 S |
| Linearity Error | ≤ ± 1 % |
| Display | Monochrome dot matrix display |
| Gas Unit | ppm, mg/m3, % VOL, % LEL |
| Humidity | 0 % RH to 95 % RH |
| Degree of Protection | IP66 |
| Operating Time | 14 hours continuously |
| Weight | 8.46 oz (240 g) |
| Temperature | – 4 °F to 122 °F (- 20 ºC to 50 ºC) |
| Dimensions | 5.16 in x 3.27 in x 1.38 in (13.1 cm x 8.3 cm x 3.5 cm) |
