Overview

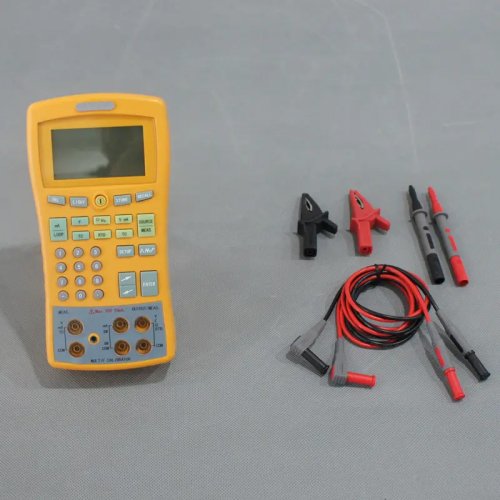

Enviro Testers multifunctional process calibrator is a handheld, battery-powered instrument that measures and sources a variety of parameters. It can be widely applied in industrial fields and laboratories.
Features
- A split-screen display. The upper display shows measure parameters while the lower one shows measure or source parameters
- Counting pulse function
- Calibration functions
- Auto ramping and auto stepping
- Manual and automatic cold junction compensating
- Clear function
- Temperature unit switching
- Auto flashing jacks
- Backlight LCD
- Battery gauge
Technical Specification
| Function | Measure | Source/Measure | |
| Measure | Measure | Source | |
| V DC | 0 V to 30 V | 0 V to 20 V | 0 V to 0 V |
| mV DC | 0 mV to 100 mV | 0 mV to 100 mV | 0 mV to 100 mV |
| mA DC | 0 mA to 24 mA | — | 0 mA to 24 mA |
| Current loop | 0 mA to 24 mA | — | — |
| Transmitter signal | — | — | 0 mA to 24 mA |
| Counting pulse | — | 0 to 99999 | — |
| Frequency | — | 1 k Hz to 10 k Hz | 1 k Hz to 5 k Hz |
| Resistance | — | 0 Ω to 3200 Ω | 15 Ω to 3200 Ω |
| Thermocouple (TC) | J, K, T, E, R, S, B, N | ||
| RTD(ResistanceTemperatureDetector) | — | Cu 50Pt 100(385) | |
