Overview

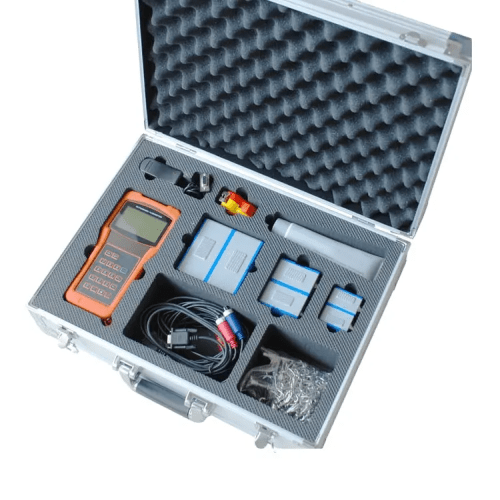

GaoTek digital portable ultrasonic flow meter Handheld ultrasonic flow meters enable non-contact measurement of liquid flow. The sensor is installed on the outer wall of the pipe to complete the measurement of the flow. It has the characteristics of small size, convenient carrying and accurate measurement.
Features
- Highly accurate, ±1%
- Liquid need not be conductive.
- One unit can measure flow in different diameter sizes (DN 15-DN 6000)
- Can be fitted in complicated pipelines since flow path straightening requirement is minimal
- Small size and easy to carry
- Easy installation and reduced installation time
- . No need for short tube shutoff, no pressure loss
- Built-in 32K memory, can store 2000 lines of measurement data
Technical Specification
|
Category |
Performance, parameter |
|
|
Hosts |
Principle |
ultrasonic time difference principle |
|
Pipe situation |
pipe material |
steel, stainless steel,iron,copper,PVC,allowed with lining |
|
Measuring medium |
Species |
water, sea water, industrial wastewater, beer pectising homogeneous liquid capable of conducting ultrasound |
|
Working environment |
Humidity |
Hosts:85% Hasenour protection level: IP67 |
|
Power supply |
3 built-in 1.2 V capacity 2000 Mah rechargeable Ni-MH battery, can work continuously for more than 12 hours with full charge, use AC90 V to 260 V power adapter, can realize uninterrupted measurement. |
|
|
Power Consumption |
1 W |
|
|
Housing material |
Fire retardant ABS |
|
|
Host weight |
0.86 lb (390g) |
|
