Overview

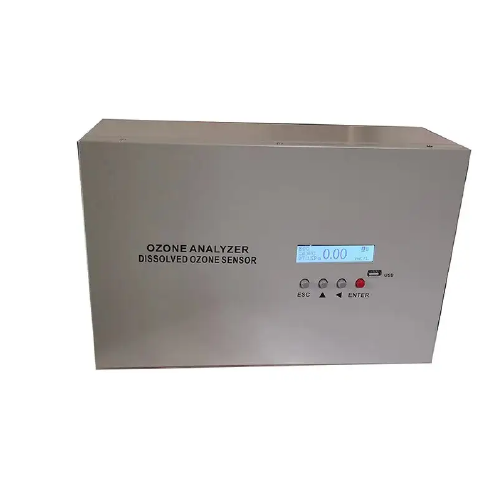

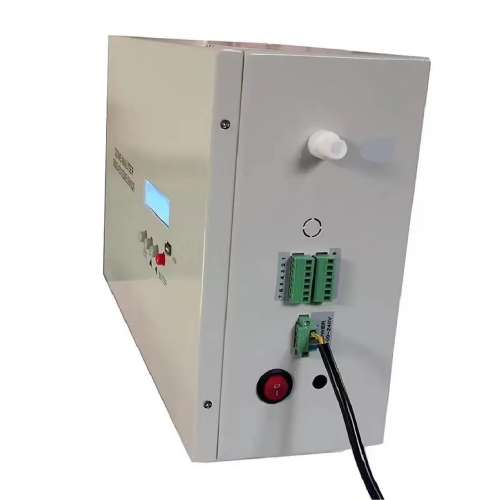

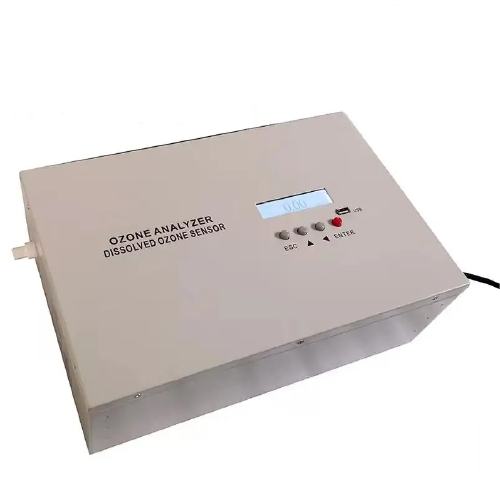

Enviro Testers Dissolved Ozone Detector is mainly used to measure ozone water concentration. It can continuously and online detect ozone concentration in ozone water. It is mainly used to detect ozone water in various industrial environments. It can also be used to detect the concentration of ozone water in running pipelines, containers and other environments. Mainly used in pharmaceutical, chemical, municipal, sewage treatment and other industries. The equipment uses an advanced dual-path ultraviolet light source system with an intelligent management system of lamp tube. After starting up, the ultraviolet lamp tube can quickly reach the measuring state. The equipment has the characteristics of easy cleaning, convenient maintenance, simple operation and low cost. Application: ozone generator, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and so on, using ozone generator industry.
Features
- Continuous online ozone water concentration measurement
- Versatile use in industrial and environmental settings
- Lambert-Beer’s law-based ozone concentration calculation
- Advanced dual-path UV light source with smart management
- Quick UV lamp startup for efficient measurements
- Easy maintenance, low-cost operation, and user-friendly
- Widely applied in pharmaceutical, chemical, water treatment industries
Technical Specifications
| Measurement Principle | 254 nm Ultraviolet Absorption Method, Double Optical Path Design |
| Pressure and Temperature Compensation | Yes |
| Ultraviolet Lamp Life | More than 10,000 hours |
| Display | Graphic Character Lattice (Standard Concentration, Pressure, Temperature Display Simultaneously) |
| Concentration Units | mg/L, ppm |
| Measurement Range | 0 ppm to 50 ppm |
| Resolution | 0.1 ppm |
| Accuracy | 0.5% |
| Repeatability | 0.5% |
| Response Time | Less than 1 second |
| Zero Drift | Less than 0.2% |
| Operating Pressure | Less than 0.1 Mpa |
| Flow Usage | Influent Pressure Less than 0.1 MPA |
| Signal Output | 4 mA to 20 mA, 0 V to 5 V, High and Low Concentration Two-Way Alarm (Concentration Value Can Be Set) |
| Printer Interface | Yes |
| Network Communication Connection | RS485 |
| USB Interface | Yes (Real-Time Data Storage) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Power Supply | AC 100 V to 240 V, 10 VA |
| Dimensions (Maximum) | 14.96 in x 9.84 in x 5.12 in (380 mm x 250 mm x 130 mm) |
| Weight | 3.31 lbs (1.5 kg) |
