Overview

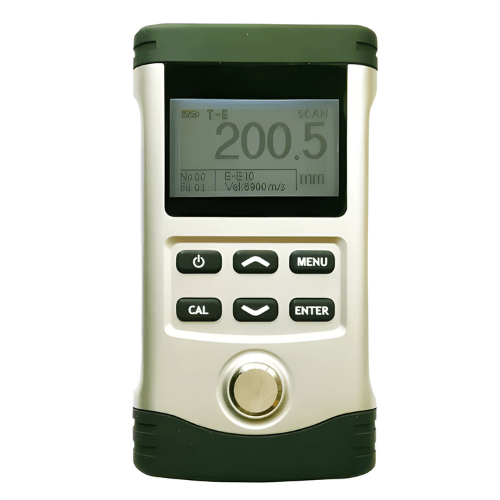

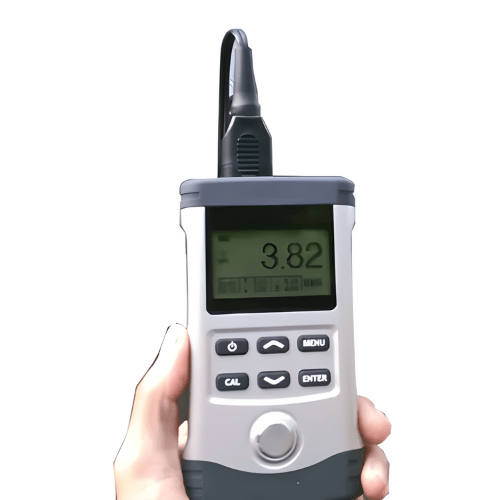

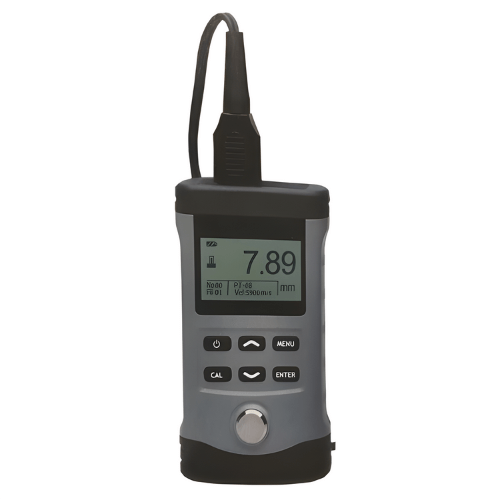

The Enviro Testers Echo Ultrasonic Thickness Gauge Meter, presented in the stylish model, boasts an energy-saving design with a waterproof keyboard, ensuring longevity and user-friendliness. It excels in both normal mode, ideal for measuring material thickness, and Coating Thickness Mode, functioning as a reliable coating thickness gauge. The gauge features an automatic adjustment mechanism to enhance measurement accuracy and exhibits the convenience of auto-probe recognition, making it a versatile and efficient tool for precise thickness measurements.
Features
- Fashionable Style; Energy-saving; Waterproof Keyboard; Simple-using
- Normal Mode: Used for measuring of material thickness
- Coating Thickness Mode: Used as a coating thickness gauge for measuring the coating thickness
- Auto adjustment for the measuring accuracy
- Auto recognition for different types of probes
Technical Specifications
| Sound Speed Range | 1000 m/s to 9990 m/s |
| Display Digits | Four digits |
| Indication Accuracy | 0.1 mm (measurement greater than 100 mm); 0.01 mm (measurement less than 100 mm) |
| Measurement Error | H<10 mm, ±0.05; H≥10 mm, ±(0.01+H/200). (H is the measured thickness value) |
| Measurement Method | Manual storage measurement |
| Storage Capacity | Divided into 6 groups, each group has 100 measurement points, a total of 600 measurement points |
| Power Supply | Two AA batteries |
| Use Environment | Temperature: 14 °F to 140 °F (-10 ℃ to 60 ℃); relative humidity less than 90%. |
| Dimensions | 5.7 in x 3.1 in x 1.1 in (146 mm x 81 mm x 30 mm) |
| Weight | 0.66 lb. (300 g) |
