Name: Enviro Testers Economical Inline Refractometer - Enviro Testers
SKU: ETEMRR-102

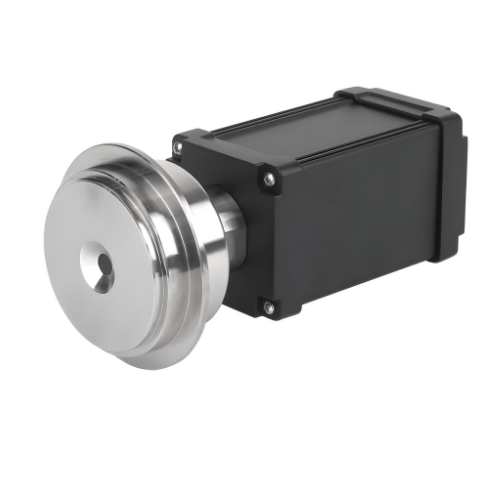

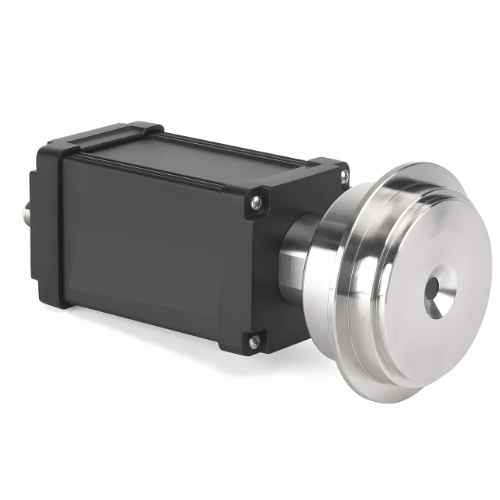

Enviro Testers Economical Inline Refractometer

This Economical Inline Refractometer has a max pressure of 1 mpa, protection grade of IP65, and operating current of less than equal to 200 mA.

SKU: ETEMRR-102 Category: Agricultural Refractometers

Technical Specifications

Measure range	0% to 53%
Measure Parameters	Refractive index (nD), Brix (%), Temperature (°C)
Min Resolution Ratio	Brix: 0.1% (Range for 15% & 53%)
Measurement Accuracy	Brix: ± 0.3% (standard)
Operating current	≤200 mA
Display menu	Refractive index(nD), Brix (%), Temperature (° C)
Output	4 mA to 20 mA , 4 mA to 20 mA + RS485 optional
Power	12 V DC to 24 V DC
Wetted parts material	Prism: sapphire, Prism stage: SS304, SS316L (can be customized)
Optical source	LED (the wave length approximate to D line)
Max Pressure	1 MPa
Protection grade	IP65
Process connection	0.5 N PT, other size supply free adaptor
Measurement Temperature	32 °F to 185 °F (0 ℃ to 85℃) (Automatic Temperature Compensation)
Environment Temperature	50 ℉ to 140 ℉ (10 ℃ to 60 ℃)
Instrument Size	9.05 in x 6.69 in x 2.55 in (230 mm x 170 mm x 65 mm)
Recorder output cable	78.7 in (2 M), 118.1 in (3 M), 196.8 in (5 M), 393.7 in (10 M) optional
Size	6.88 in x 4.72 in x 3.14 in (175 mm x 120 mm x 80 mm)
Weight	4.40 lb (2 KG)
