Overview

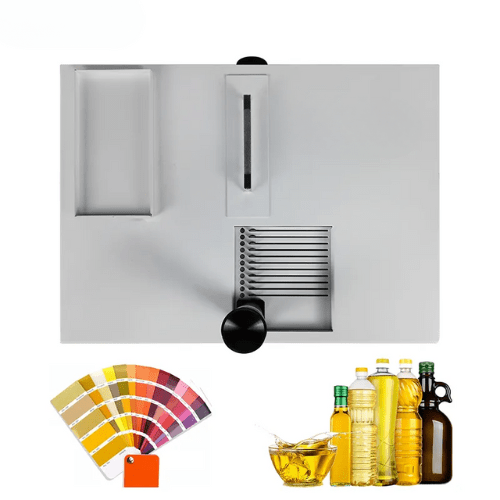

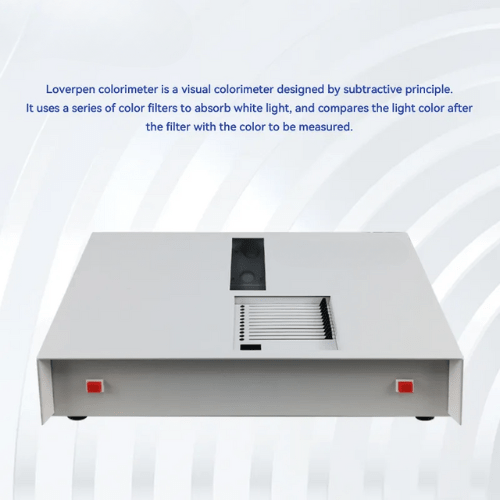

Enviro Testers edible oil comparative colorimeter is a visual color matching instrument for measuring the color of substances, which can be used for measuring the color of edible oil, plastic, textile, food, jam, grain, grease, rosin, spices, rubber and other substances. The transmission method is suitable for the measurement of liquid and transparent colored materials, and the reflection method is suitable for the measurement of the surface color of non-transparent materials.

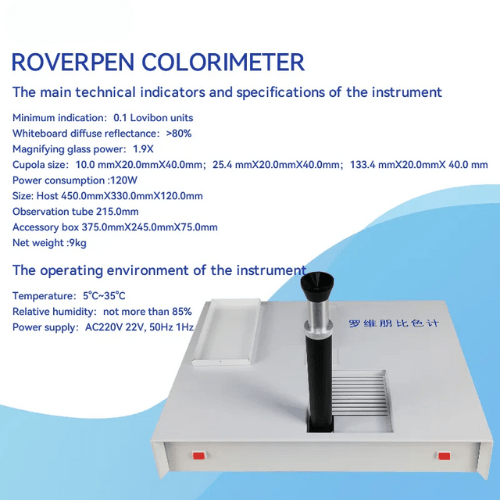

Technical Specifications
| Color range | Red R0.1 to 79.9 Rovibon units Yellow Y0.1 to 79.9 Lovibon units Blue B0.1 to 49.9 Roverbon units Neutral grey N0.1 to 3.9 Lovibon units |
| Small indication value | 0.1 Lovipen unit |
| Whiteboard diffuse reflectance | > 80% |
| Magnifying glass power | 1.9 X |
| Color plate size | 0.39 in x 0.78 in x 1.57 in (10 mm × 20 mm × 40 mm) 1.0 in x 0.78 in x 1.57 in (25.4 mm x 20 mm x 40 mm) 5.25 in x 0.78 in x 1.57 in (133.4 mm x 20 mm x 40 mm) |
| Power supply | AC 220 V ± 22 V,50 HZ ± 1 HZ |
| Power consumption | 120 W |
| Observation tube | 215 |
| Storage Temperature Range | 41 ℉ to 95 ℉ (5 ℃ to 35 ℃) |
| Size | 17.71 in x 12.99 in x 4.72 in (450 mm × 330 mm × 120 mm) |
| Weight | 22.04 lbs (10 Kg) |
