Overview

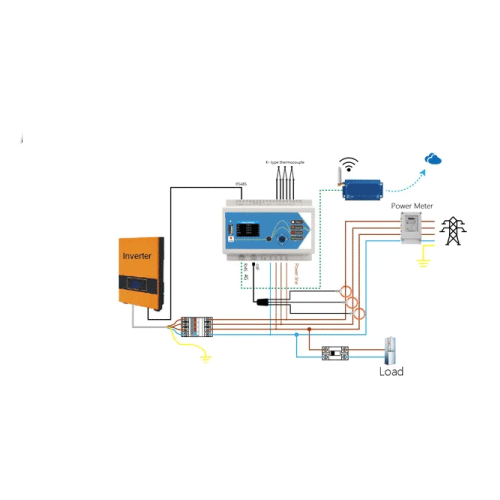

Enviro Testers Electric Power Meter Temperature Data Logger can realize no dismantling wire test, facilitate engineering test, simplify test steps, save construction cost, and is also more convenient for the inspection and maintenance of distribution systems. It supports systems of single-phase and three-phase: it can measure multiple electrical parameters such as voltage, current, harmonic, energy, power factor, and active power on the power grid of phases A, B, C, and N. With standard configurations of RJ45 and RS485 communication interfaces and standard Modbus TCP and Modbus RTU protocols, it can be compatible with various configuration systems and transmit the electrical parameters collected by the front end to the system data center in real time.
Feature
- Precise Measurements
- Wireless Connectivity
- Long Battery Life
- Easy Installation
- Compact and Durable
- Data Analysis
- Alert Notifications
- Multi-Channel Monitoring
- Cloud Integration
- Cost-Effective Solution
Technical Specifications
| Display screen | 1.3 – in color OLED |
| Color | White |
| Input voltage value | 12 mV to 707 mV |
| Overload capacity | 2 V, 10 s / hour |
| Current measurement accuracy | 0.5 % (1 % to 120 % rated current) (<10 A, accuracy not guaranteed) |
| Operating temperature | – 13 ºF to 131 ºF (- 25 ºC to + 55 ºC) |
| Storage temperature | – 40 ºF to 185 ºF (- 40 ºC to + 85 ºC) |
| Humidity range | 5 to 95 % RH, 122º F (50 ºC) (non-condensing) |
| Weight | Approx 0.88 lb (400 g) |
| Dimension | 5.12 in x 3.74 in x 2.20 in (13 cm x 9.5 cm x 5.6 cm) |
