Overview

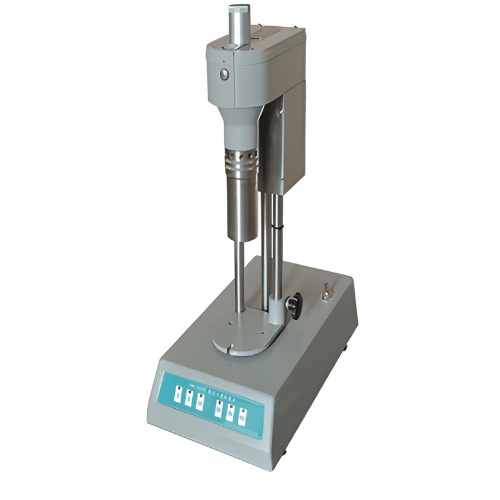

Enviro Testers Electric rotational viscometer, High Quality Digital Electric Rotational Viscometer for Drilling Fluid, Application: Electric rotational viscometer is designed according to API specification. The device works by a synchronous belt driving two synchronous pulleys. Compared with traditional drive shaft, it reduces the fault point and makes structure more rational.
Technical Specifications
| Name | Electric Rotational Viscometer |
| Remarks | F1 Torsion spring measuring assembly/ F0.2 Torsion spring measuring assembly (Optional accessories) |
| Rated Frequency | 110 V or 220 V ±5% 50 Hz or 60 Hz |
| Motor Power | 140 W |
| Motor Speed | 720 r/min |
| Speed Range | 3 r/min, 6 r/min, 100 r/min, 200 r/min, 300 r/min, 600 r/min |
| Velocity-Gradient | 5 S-1, 10 S-1, 170 S-1, 340 S-1, 511 S-1, 1022 S-1 |
| Measuring Accuracy | 145.038 pSi.s to ±3625.94 pSi.s (1 to 25 mPa.s ±1 mPa.s) (Newtonian fluid) 3625.94 pSi.s (25 mPa.s) or more ±4% (Newtonian fluid) |
| Viscosity Measurement Range | Newtonian fluid: 0 pSi.s to 43511.3 pSi.s (0mPas to 300mPa.s) (F1 measurement component) Non-Newtonian fluid: 0pSi.s to 21755.7 pSi.s (0 mPas to 150mPa.s) (F1 measurement component) Shearing stress: 0 to 153.3Pa (F1Measuring assembly) |
| Outline Dimension | 13.38 in x 7.48 in x 16.93 in (340 mm ×190 mm × 430 mm) |
| Package Size | 24.41 in x 11.81 in x 19.29 in (620 mm × 300 mm × 490 mm) |
| Net Weight | 17.64 lb (8 kg) |
