Overview

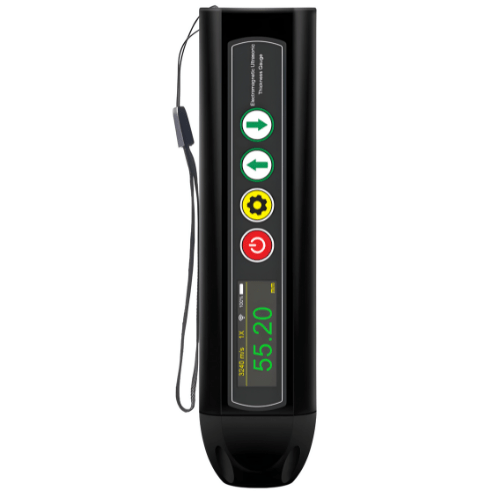

This Electromagnetic Ultrasonic Thickness Gauge has operating frequency of 4 MHZ, resolution of 0.002 in, and power supply of lithium battery.
Technical Specifications
| Measuring Range | (1.0 mm to 250 mm) 0.039 in to 9.84 in |
| Lifting Clearance | (0 mm to 2.5 mm) 0 in to 0.098 in |
| Resolution | (0.05 mm) 0.002 in |
| Operating Frequency | 4 MHz |
| Adjustable Range of Sound Velocity | 1000 m/s to 9999 m/s |
| Continuous Working Time | 4 h |
| Power Supply | Lithium battery |
| Excitation Mode | Permanent magnet |
| Size | (176 mm x 42 mm x 32 mm) 6.93 in x 1.65 in x 1.26 in |
| Weight | (0.25 kg) 0.55 lb |
