Overview

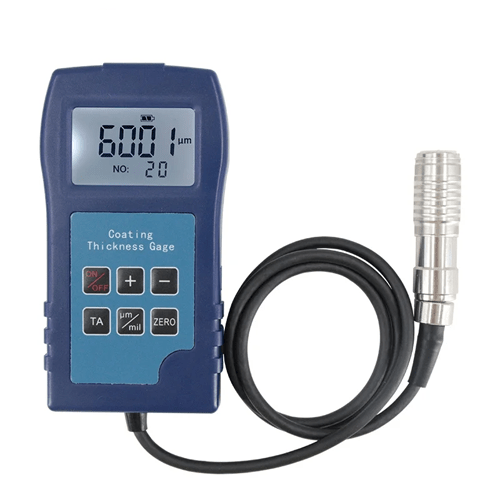

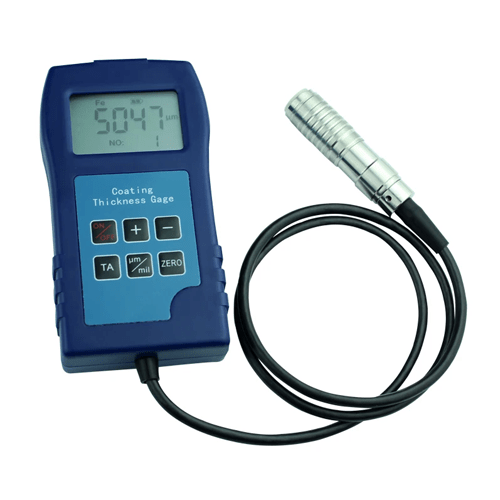

Enviro Testers Fireproof Paint Coating Thickness Gauge is a Large Range Coating Thickness Gauge that test Magnetic thickness method which can be non-destructively measure magnetic metal matrix ( such as: steel, iron, nickel ) or non-magnetic coatings thickness such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, Anticorrosive coatings, bitumen and fire retardant coatings, etc.)
Features
- Fine small integrated, convenient to carry
- Metal probe, Simple operation, quick test speed
- Two test methods: a continuous test and a single measuring method
- Four statistical functions: maximum value, minimum value, average value, the number of measurements
- Can store 2000 measurement data, Divided into 10 sets of data preservation.
- The instrument can be connected computers communicate to read the stored data to save or print (Application of U type host)
- Two calibration methods: zero calibration and two-point calibration
- Operation process has the buzz sound prompt (single measurement)
- Automatic recognition of Fe and NFe substrates
- Low voltage indication
- Metallic test head, wear resistance, not easy to damage
- Manual / automatic shutdown function
Technical Specifications
| Measuring Range | 0 in to 0.37 in (0 mm to 9.5 mm) |
| Using Environment | 32 °F to 122 °F (0 ℃ to 50 ℃) 20% RH to 90% RH, not strong magnetic place. |
| Measurement Accuracy | ± 3% H + 2 μm |
| Thinnest Matrix | 0.02 in (0.4 mm) |
| Resolution Ratio | 0.1 μm : 1 μm |
| Minimum Curvature | Convex 0.2 in (5 mm); Concave 0.98 in (25 mm) |
| Minimum Matrix | 0.63 in x 0.63 in (16 mm x 16 mm) |
| Power Source | Three alkaline batteries |
| Dimension | 5.12 in x 2.76 in x 0.94 in (130 mm x 70 mm x 24 mm) |
| Net Weight | 0.22 lb. (100 g) |
