Features

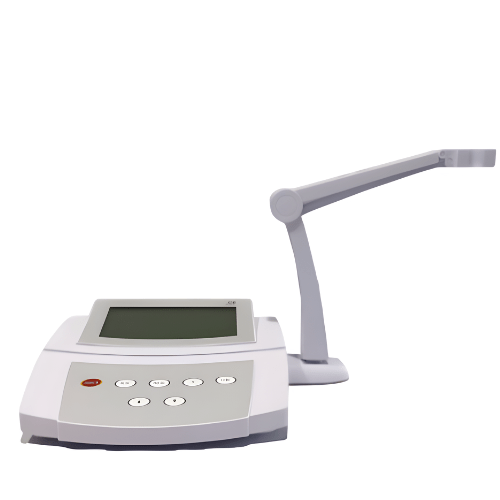

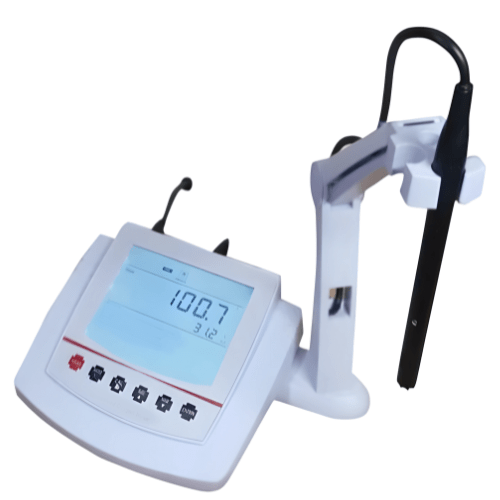

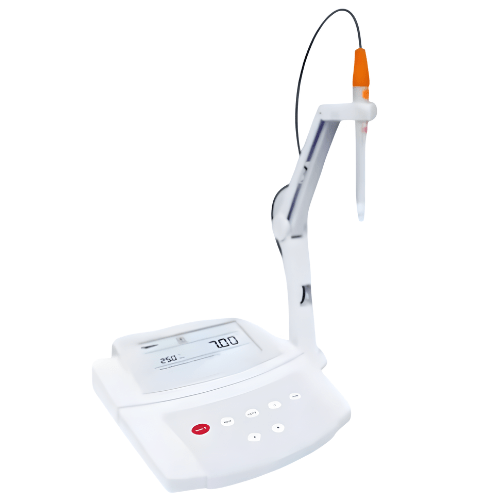

- 1 Precision benchtop fluoride ion meter is equipped with a large backlit LCD display
- 2 to 5 points calibration, including the 8 concentration points can be selected
- Direct ion concentration readout simplifies the measurement process
- Automatic temperature compensation ensures accurate readings over the entire range
- Auto-Read function senses and locks the measurement endpoint
- Calibration due alarm prompts user to calibrate the meter regularly
- Automatic electrode diagnosis shows the calibration points and slopes
- Setup menu allows setting the number of calibration points, ionic valency
- Reset function automatically resumes all settings back to the factory defaults
- Expanded memory stores or recalls up to 500 data sets
- USB communication interface is easy to transfer data to PC
Technical Specifications
| Ion Concentration Range | 0.02 ppm to 1900 ppm and 1 ppm to 35000 ppm |
| Ion Concentration Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Ion Concentration Accuracy | ± 0.5 % F.S. |
| Ion Concentration Calibration Points | 2 points to 5 points |
| Ion Concentration Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 |
| Ion Concentration Measurement Units | ppm, mg/L, mol/L, mmol/L |
| mV Range | -1999.9 MV to 1999.9 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ± 0.2 mV |
| Offset Calibration | 1 point |
| Calibration Range | Reading ± 10°C or °F |
| Hold Function | Manual or Auto-read measurement endpoint |
| Stability Criteria | Low or High |
| Calibration Due Alarm | 1 days to 31 days or off |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 3.5 mm (0.14 in) jack socket |
| Display | Custom LCD |
| Power Supply | 5 V DC power adapter |
| Temperature Range | (0 °C to 105°C) 32°F to 221°F |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C) manual or automatic |
| Accuracy | ±0.9°F (±0.5°C) |
| Dimensions | 8.26 in x7.40 in x 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | 3.30 lb (1.5 kg) |
