Overview

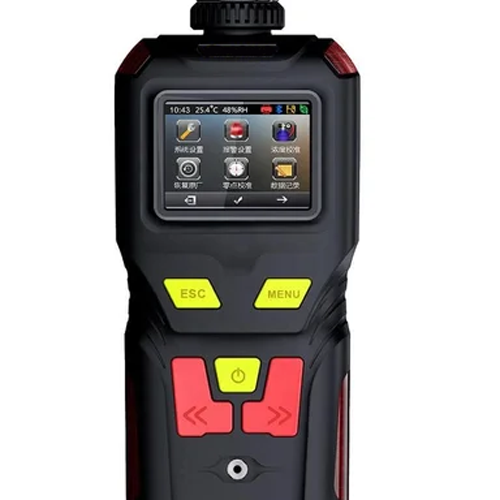

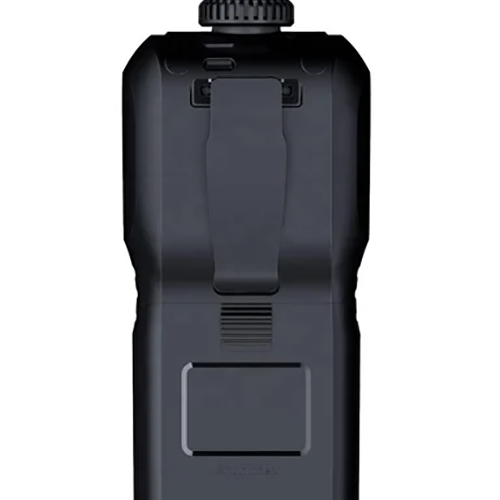

Enviro Testers Formaldehyde Gas Detector – IP 65 Protection provides protection from up to 4 potential atmospheric hazards including oxygen, combustible and toxic gases, the types of gases for detection are more than 500 types, it is unparalleled in its versatility, capability and overall value. Its adopted water-resistant line of portable gas detectors has transformed the market with its matchless array of features.
Features
- Detects 1 to 4 gases among 500+ types simultaneously
- Displays data in 7 units PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/l
- Features a 2.31-inch HD color screen with various information
- Graphically displays gas concentration trends over time
- Simultaneously displays five gas concentrations, offering three display modes
- Stores up to 100,000 entries with real-time or alarm-based storage
- Supports data viewing, deletion, and upload via USB and RS485
- Includes humidity dust filter for accurate readings
- Multiple alarm modes: sound, light, vibration, and visual on-screen
- Alarm types: concentration, under-voltage, and failure alarms
- Alarm settings: low, high, interval, weighted average
- Zero-point, auto-tracking for long-term accuracy
- Multi-level calibration for linearity and precision
- Logs calibration, repairs, failures, and sensor life
- Data recovery and mis operation prevention
Technical Specifications
| Measuring Range | TVOC: 0 ppm to 10 ppm
CH2O: 0 ppm to 10ppm |
| Resolution | TVOC: 0.01 ppm
CH2O: 0.01 ppm |
| Sensor Type | CH2O: Electrochemical
TVOC: Thermal conductivity |
| Measuring Type | Built-in Pump suction |
| Response Time | T90 < 30 seconds |
| Display | 2.31 – inch-high-definition color screen |
| Alarm Method | Sound, light and vibration alarm |
| Battery Voltage | DC 3.7 V |
| Battery Voltage | 4500 mA high-capacity rechargeable polymer battery |
| Data Storage | Standard capacity is 100,000 entries |
| Working Humidity | ≤ 10 % RH to 95 % RH |
| Housing | Rubber enclosure |
| Standard Accessories | Manual, qualification certificate, warranty card, USB charger (including the data cable), belt clip, colorful packaging box (optional high-grade aluminum instrument case) |
| Ex Grade | Ex IA IIC T6 Ga Intrinsically safe type |
| Ingress Protection | IP 65 |
| Temperature | – 40 °F to 158 °F (- 40 ℃ to + 70 ℃) |
| Size | 6.30 in x 2.76 in x 1.10 in (16 cm x 7 cm x 2.8 cm) |
| Weight | 10.58 oz (300 g) |
