Overview

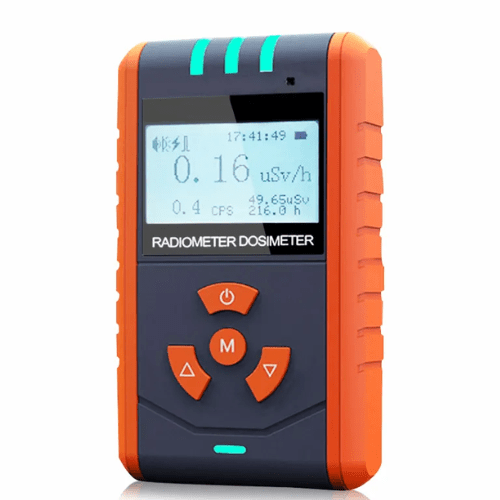

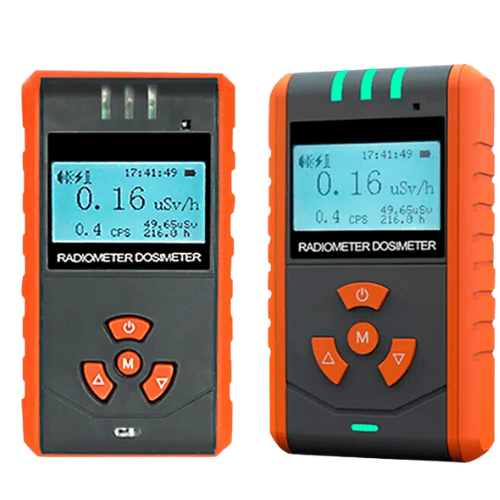

Enviro Testers Geiger counter radiation detector counting instrument designed to detect the intensity of ionizing radiation (a particles, particles, y rays, and x rays), using an inflatable tube or chamber as a probe when a voltage applied to the probe reaches a certain range, for every pair of ions produced by the ionization of the Ray in the tube, an electro pulse of the same size can be amplified and recorded by a connected electronic device, thus measuring the number of ray per unit time.
Technical Specifications
| Detector | GM counter with energy compensation |
| Dose rate | 0.01 μSv/h to 5000 μSv/h |
| Cumulative dose | 0.00 μSv to 9999 Sv |
| Energy range | 30 keV to 3.0 Mev |
| Fundamental error | No more than ± 15% (¹³⁷Cs) |
| Power supply mode | 3.7 V, 900 mA rechargeable lithium battery |
| Alarm threshold of dose rate | Adjustable in full range |
| Cumulative dose alarm threshold | Adjustable in full range |
| Relative humidity | ≤ 95% (104 °F ± 35.6 °F) (40 ℃ ± 2 ℃) |
| Protective alarm response time | ≤ 5 seconds |
| Dosimetry display unit | μSv, h, mSV/h, automatic switching |
| Cumulative dose display unit | μSv, mSV, Sv, automatic switching |
| Ambient temperature | 14 °F to 122 °F (-10 ℃ to +50 ℃) |
| Counting rate | CPS |
| Product weight | 0.22 lbs (0.1 kg) |
| Product size | 4.0 in × 2.4 in × 1.1 in (102 mm x 62 mm x 28 mm) |
