Overview

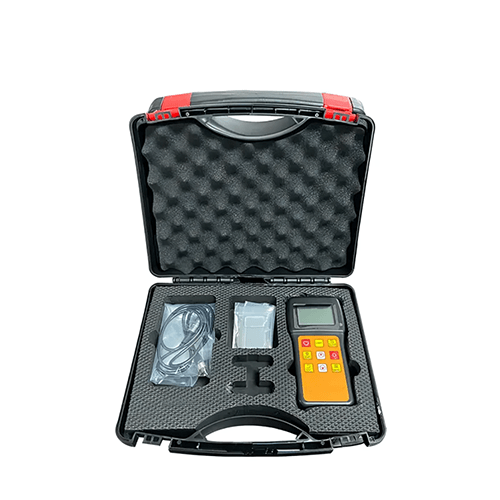

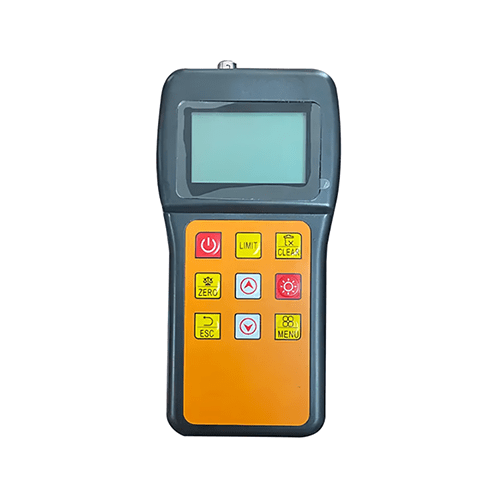

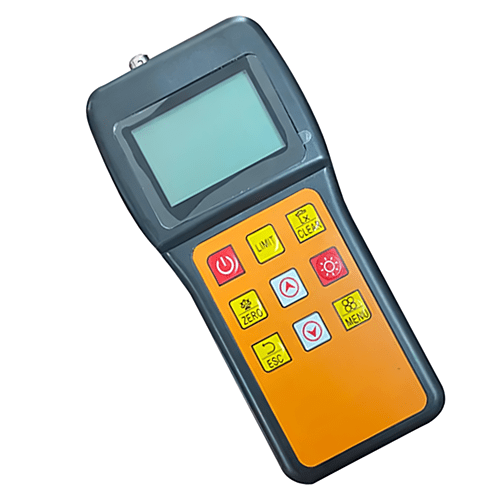

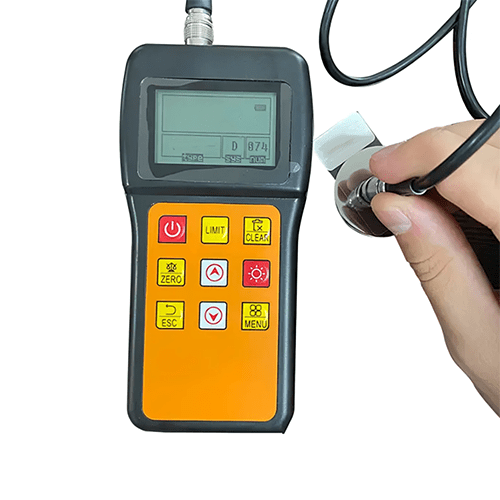

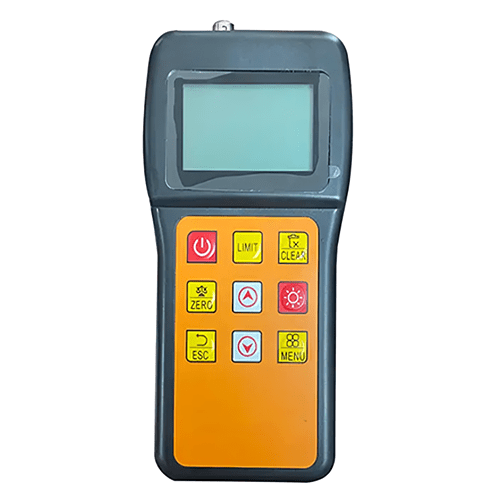

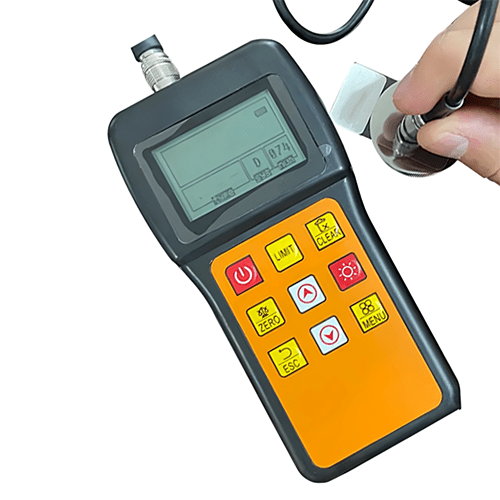

Enviro Testers Coating Thickness Guage can measure the thickness of coatings and cladding materials quickly, nondestructive and accurately. It is suitable for both field and laboratory use. By using different probes, the meter can meet a variety of measurement requirements. It can be used in manufacturing, metal processing, chemical industry and commodity inspection industry.
Technical Specifications
| Working Principle | Magnetic induction and Eddy current |
| Measurement Accuracy | F1(± ((1 to 2) %H+1)), F10(± ((1 to 3) %H+1)), N1(± ((1 to 2) % H+1)) |
| Measuring Range | F1(0 to 1250 µm), F10(0 to 10000 µm), N1(0 to 1250 µm) |
| Minimum Curvature | F1 0.12 in (3 mm), F10 0.39 in (10 mm), N1 0.16 in (4 mm), F400 0.04 in (1 mm) |
| Probe Selection | Optional 10 probes |
| Minimum Area | F1(Φ7), F10(Φ40), N1(Φ5), F400(Φ3) |
| Measurement Method | Continuous measurement method, single measurement method |
| Statistics Function | Mean, Large, Small, Tests, Standard Deviation |
| Calibration Method | Single-point calibration, two-point calibration, and five-point basic calibration method to correct the system error of the probe |
| Storage Function | Can store 495 measured values, with delete function: delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurement |
| Alarm System | Limits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function; beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps |
| Shutdown Method | Manual shutdown mode and automatic shutdown mode |
| Power Supply | Two 5# batteries |
