Overview

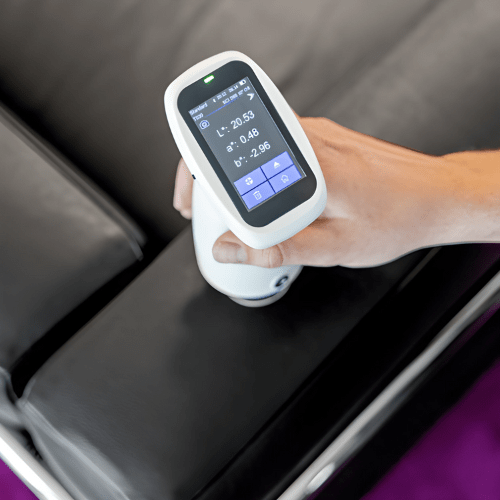

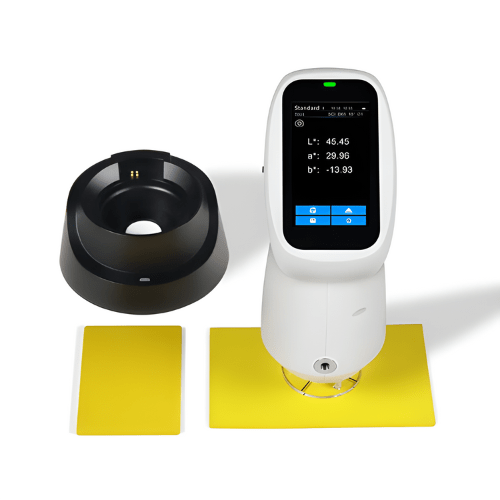

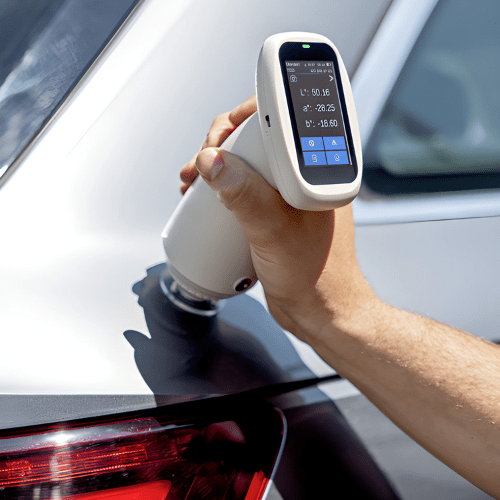

Enviro Testers handheld colorimeter serious about color measurement and high user satisfaction. This product is made by CMOS dual-channel Spectro colorimeter sensor, which is not only a colorimeter, but also a Spectro colorimeter, with excellent repeatability and inner-instrument error. The measurement data is stable, accurate and reliable. With a comfortable and round appearance more people love it. It also has quality management software that facilitates quality monitoring and data management. This product color difference analyzer Spectro colorimeter is equipped with double aperture: 0.15 in or 0.19 in (Φ 4 mm or Φ 5 mm) flat and tip, widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control.
Features
- Adopt D or 8 optical structure and SCI or SCE mode
- Adopt full waveband balanced LED light source
- Grating splitting technology
- Intelligent base, automatic calibration
- New fashion appearance design based on ergonomics
Technical Specifications
| Optical Geometry | D or 8 (diffused illumination, 8-degree viewing angle), SCI or SCE (specular component included or specular component excluded) Mode, Comply to CIE No.15, GB or T 3978, GB 2893, GB or T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Characteristic | Adopt CMOS dual beam splitting sensor, used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries. |
| Light Source | Combined full spectrum LED light source |
| Integrating Sphere Size | 1.5 in (Φ 40 mm) |
| Sensor | CMOS dual beam splitting sensor |
| Wavelength Range | 400 nm to 700 nm |
| Measuring Aperture | Two Apertures, SAV, 0.15 in or 0.19 in (Φ 4 mm or Φ 5 mm) |
| Specular Component | SCI or SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, Hunter Lab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc (2, 1), ΔE x cmc (1, 1), ΔE x 00, DINΔE 99, ΔE (Hunter) |
| Other Colorimetric Index | Spectral reflectance, WI (ASTM E313, CIE or ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Metamerism Index Mt, Staining Fastness, Color Fastness, Color Strength, Opacity, 555 tone classification, Munsell (C or 2) (Mobile APP implementation) |
| Observer Angle | 2° or 10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83 or U30), U35, NBF, ID50, ID65 |
| Display | Spectrogram or Values, Samples Chromaticity Values, Color Difference Values or Graph, PASS or FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1 sec |
| Repeatability | Chromaticity value, MAV or SCI, within ΔE x ab 0.035 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5 sec), Spectral reflectance MAV or SCI, Standard deviation within 0.1% (400 nm to 700 nm within 0.2%) |
| Inter-instrument Error | MAV or SCI, Within ΔE x ab 0.35 (Average for 12 BCRA Series II color tiles) |
| Displayed Accuracy | 0.01 |
| Measured Reflectance Range | 0% to 200% |
| Reflectance Resolution | 0.01% |
| Measurement Mode | Single Measurement, Average Measurement (2 to 99 times) |
| Locating Method | Stabilizer position |
| White Calibration mode | Contact type automatic calibration |
| Battery | Lithium battery, 3.7 V, 5000 mAh, 8000 cycles in 8 hrs |
| Illuminant Life Span | More than 1.2 million measurements over 10 years |
| Interface | USB |
| Data Storage | Standard 500 Pcs, Sample 5000 Pcs (One data can include SCI or SCE), PC mass storage |
| Software support | Windows |
| Operating Humidity | 0% to 85% RH (no condensing) |
| Storage Humidity | 0% to 85% RH (no condensing) |
| Display | 2.8 in (7.11 cm) TFT true color, Capacitive Touch Screen |
| Operating Environment | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Storage Environment | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Dimension | 3.7 in x 2.6 in x 7.4 in (94 mm x 68 mm x 188 mm) |
| Weight | About 9.52 oz (270 g) |
