Overview

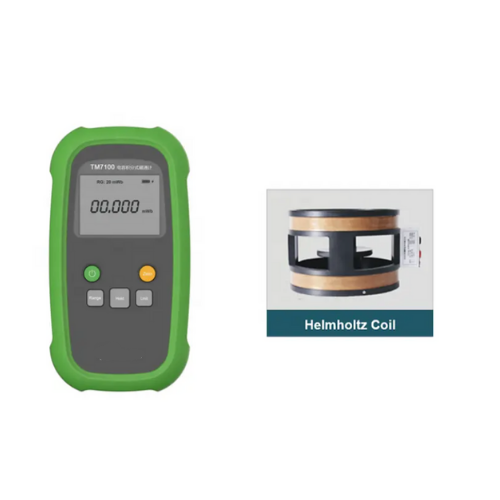

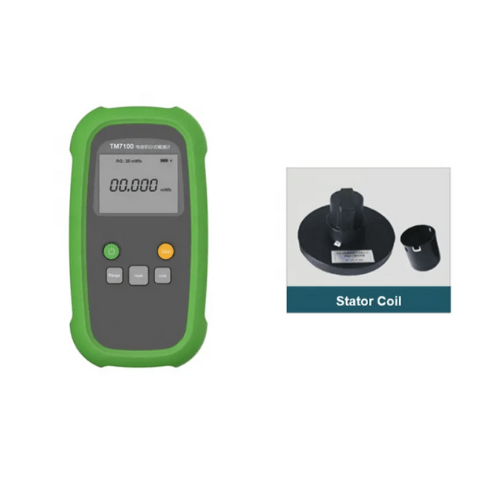

Enviro Testers handheld magnetic flux meter is a portable measuring instrument, designed with a high-speed microprocessor and a low-drift electronic integrator. It’s applied for measuring spatial magnetic field or permanent magnet flux with types of coils.
Features
- Range 0.2 mWb to 2 Wb
- Accuracy Class 0.5, 1 or 2
- Drift after zeroing ≤ 2 μWb / min
- 4-digits display, minimum resolution 1 μWb
- Unit switch mWb, Mx
- Maximum hold function
- One-key reset and zero drift
- Display support backlight and battery power
- Lithium battery power supply
- Small size, light weight
- Support various of measuring coil
Technical Specifications
| Measuring Range | 0.2 mWb to 2 Wb | |
| Accuracy Class 1 And 2 |
± (1% x RD [1] + 10 μWb) ± (2% x RD + 10 μWb) |
|
| Zero Drift | Max (2 μWb / min, 0.05% x RG[2] / min ) | |
| Remark | [1] RD is the reading value, [2] RG is the range value |
|
| Power Supply | Lithium Battery | |
| Humidity Performance | Working humidity 20% to 80% RH Non-condensing Storage humidity < 85% R·H Non-condensing |
|
| Interface | Magnetic flux coil input, USB interface | |
| Temperature Performance | Operating temperature 32°F to 113 °F (0 °C to 45 °C) Storage temperature -4°F to 158 °F (-20 °C to 70 °C) |
|
| Dimensions | 3.54 in x 1.57 in x 6.50 in (90 mm x 40 mm x 165 mm) | |
| Weight | 0.77lb (350 g) | |
