Overview

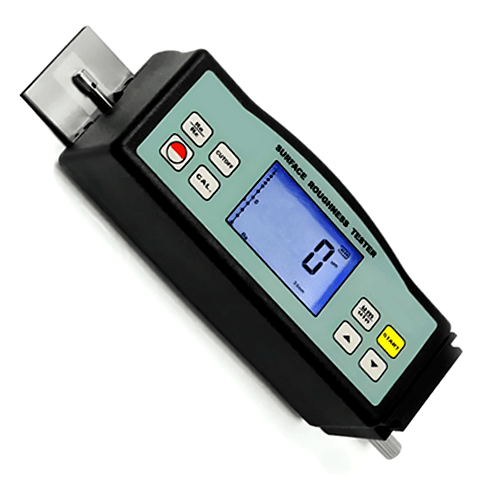

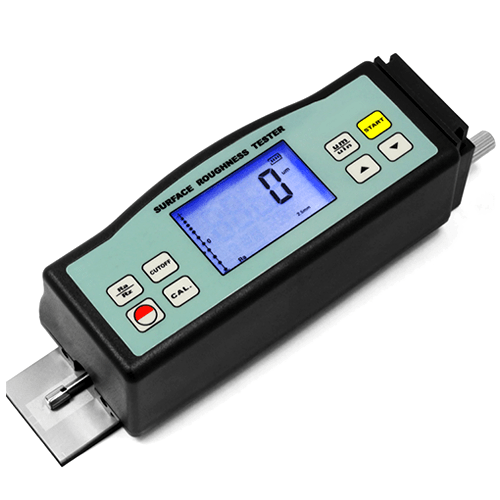

Enviro Testers Handheld Surface roughness tester is widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters. It is compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
Features
- Multiple parameter measurement: Ra, Rz.
- Highly sophisticated inductance sensor
- Built-in lithium ion rechargeable battery
- control circuit with high capacity
- Small size, and weight and easy to use
- Manual or automatic shutdown
- Metric /Imperial Conversion
- Provide BT data output choice
Technical Specifications
| Display | 4 digits, 10 mm LCD, with blue backlight |
| Parameters | Ra, Rz |
| Measuring Range | Ra: 0.05 to 10.00 um or 1.000 to 400.0 uinch Rz: 0.020 to 100.0 um or 0.780 to 4000 uinch |
| Accuracy | ≤ ± 10% |
| Resolution | 0.001 um, if reading < 10um |
| Evaluation Length | 1 to 5 L optional |
| Operating Conditions | Temperature: (0 to 50 ℃) 32 ℉ to 122 ℉ Humidity: < 80 %RH |
| Power Supply | Built-in rechargeable Li-ion battery |
| Dimensions | (140 mm × 52 mm × 48 mm) 5.5118 in × 2.0472 in × 1.8898 in |
| Weight | (420 g) 0.92 lb |
